SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Air Flow, Optional

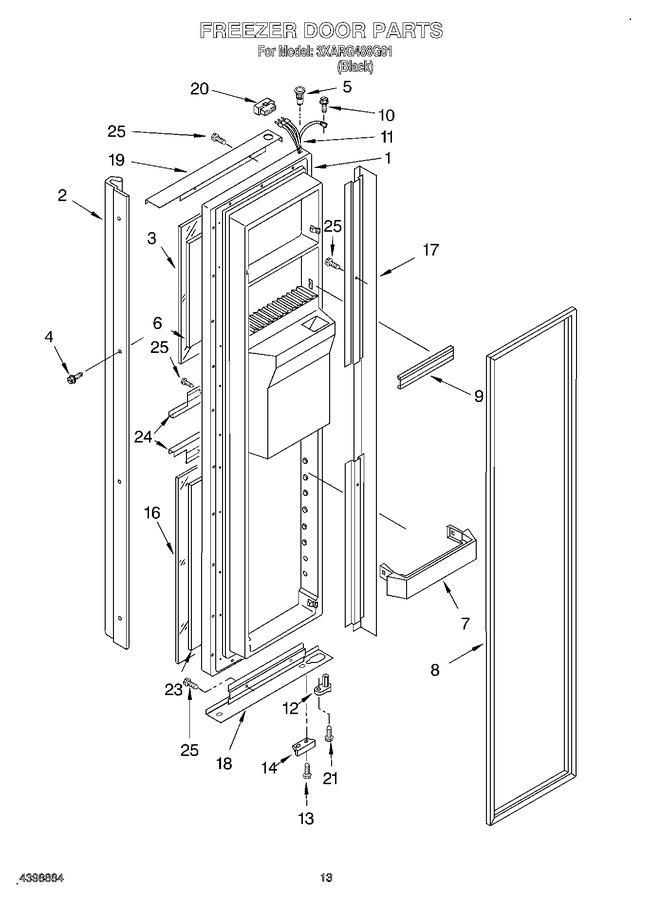

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2204299S		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2203820S		Handle		Appelez-nous	-
3	2203284B		Panel, Upper (black)		Appelez-nous	-
4	3400897		Screw		Appelez-nous	-
5	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.34
6	2208277		Filler, Panel (upper)		Appelez-nous	-
7	WP2171157		Shelf Bin (4)   (Replaces: 2171157)				$ 57.33
8	2159082		Door Gasket, Magnetic (service)				$ 299.24
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 21.84
10	WP489128		Screw   (Replaces: 488500)				$ 10.26
11	2183713		Dispenser Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.48
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	2155331		Bracket, Door Stop		Appelez-nous	-
16	2203286B		Panel, Lower (black)		Appelez-nous	-
17	2186766S		Trim, Door (hinge Side)		Appelez-nous	-
18	2203369S		Trim, Door (bottom)		Appelez-nous	-
19	2203375S		Trim, Door Top		Appelez-nous	-
20	2169477		Connector		Appelez-nous	-
21	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
23	2208278		Filler, Panel (lower)		Appelez-nous	-
24	2186778S		Trim, Dispenser		Appelez-nous	-
25	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16

    View Diagram in Separate Window       Print Part List
