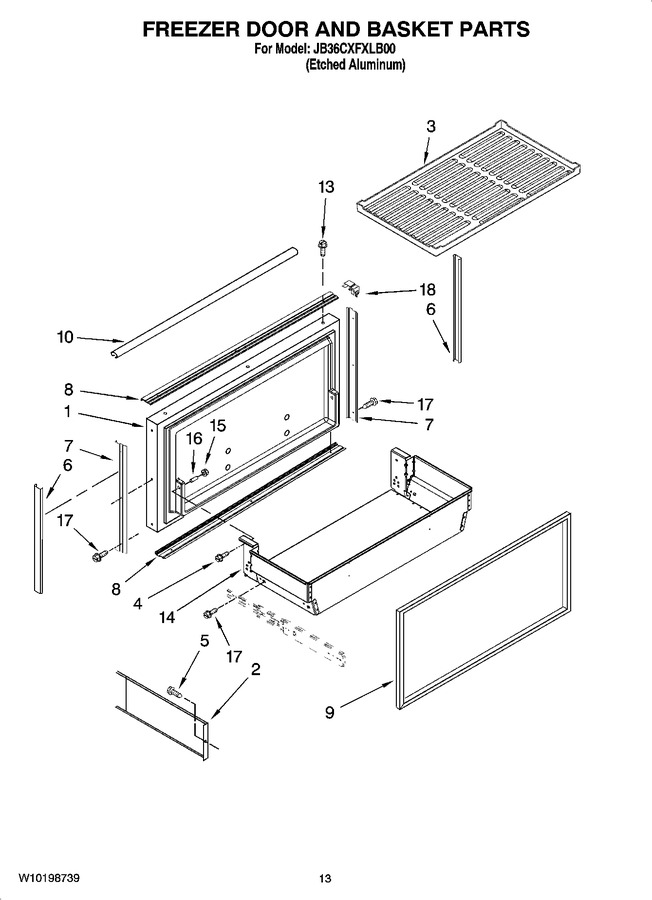

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2327401 | Freezer Door Panel (includes Item 9) |
|
- | |||||
| 2 | 2317101 | Divider, Basket (2) |
|
- | |||||
| 3 | W10168937 | Mat, Basket |
|
- | |||||
| 4 | W10135775 | Screw, 5/16 X 1 |
|
$ 14.93 | |||||
| 5 | WP488234 | Screw (Replaces: W10135792) |
|
$ 7.08 | |||||
| 6 | 2006324 | Cover, Trim (side) |
|
$ 30.22 | |||||
| 7 | 2309477 | Trim-door, Side |
|
$ 220.55 | |||||
| 8 | 2309478 | Trim-door, |
|
$ 187.20 | |||||
| 9 | 2302710 | Door Gasket, Magnetic (Replaces: 2300185) |
|
$ 307.89 | |||||
| 10 | 2006329 | Cover, Trim |
|
$ 95.97 | |||||
| 13 | WP8281250 | Screw, 8-15 X 1/2 (Replaces: 8281250) |
|
$ 11.42 | |||||
| 14 | W10258182 | Basket Assembly, Freezer (Replaces: 2327533) |
|
$ 254.40 | |||||
| 15 | WP2207454 | Nut, Hex (Replaces: 2207454) |
|
$ 11.38 | |||||
| 16 | W10001190 | Washer |
|
$ 8.80 | |||||
| 17 | W10109030 | Screw, 10-24 X 1/4 (basket To Slide) |
|
$ 15.35 | |||||
| 18 | 2207457 | Trim,corner (2) |
|
$ 57.12 |
