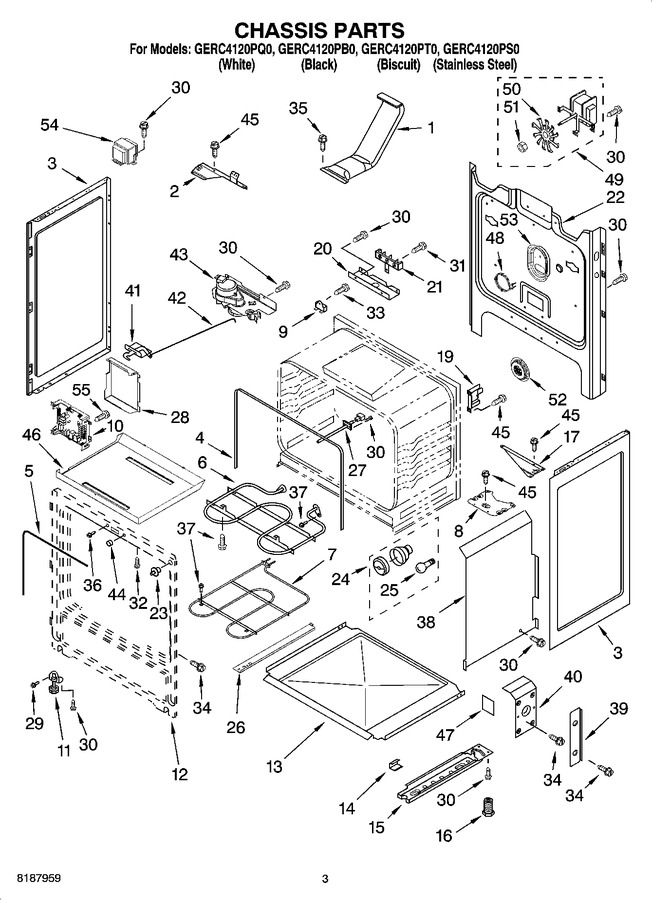

03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10134285		Vent Tube   (Replaces: 8522673)			Immediately	$ 263.00
2	8273905		Support, Corner Lr		Appelez-nous	-
3	W10162246		Panel, Side (2) (biscuit)   (Replaces: 8272519)				$ 205.91
3	W11730303		Panel, Side (2) (black)   (Replaces: 8053832)			Immediately	$ 178.50
3	WPW10575396		Panel, Side (2) (white)   (Replaces: 8053830)				$ 148.71
4	3195737		Seal, Oven Flange		Appelez-nous	-
5	W11542153		Seal, Oven Door   (Replaces: 8522416)			Immediately	$ 50.20
6	WP9757341		Element, Broil   (Replaces: 9757341)			Immediately	$ 125.65
7	WP9755770		Element, Bake Hidden   (Replaces: 9755770)			Immediately	$ 117.66
8	3195736		Support, Front (2)		Appelez-nous	-
9	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 50.10
10	9759563		Appliance Manager				$ 174.59
11	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 87.12
13	WP8054068		Tray, Insulation   (Replaces: 8054068)				$ 104.36
14	3196576		Clip, Panel (6)		Appelez-nous	-
15	W11818353		Rail, Base (2)   (Replaces: 8053335)				$ 62.66
16	WPW10058460		Foot, Rear (2)   (Replaces: 312701)			Immediately	$ 8.24
17	3195987		Guard, Wire		Appelez-nous	-
19	W10404688		Support, Oven (2)   (Replaces: 3186116)				$ 17.69
20	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
21	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 30.13
21	WP112432		Nut, (3)   (Replaces: 112432)				$ 8.63
22	9757029		Back, Main		Appelez-nous	-
23	WP3196262		Switch, Door   (Replaces: 3196262)				$ 165.47
24	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 87.01
25	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
26	9755771		Cover, Tray		Appelez-nous	-
27	WPW10181986		Sensor, Oven   (Replaces: 8273902)			Immediately	$ 106.83
28	9757970		Cover		Appelez-nous	-
29	WP98008545		Screw   (Replaces: 3196179)				$ 18.60
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
31	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
32	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
33	3196172		Screw			Immediately	$ 13.47
34	WP7101P246-60		Screw   (Replaces: 3196177)				$ 8.24
35	WP489491		Screw   (Replaces: 3196566)				$ 7.30
36	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
37	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 8.44
38	8523803		Retainer, Side (2)		Appelez-nous	-
39	3196091		Shield, Outer (2)		Appelez-nous	-
40	3196092		Shield, Inner (2)		Appelez-nous	-
41	WP9761013		Latch, Door   (Replaces: 3196119)				$ 256.36
42	3196961		Rod, Latch		Appelez-nous	-
43	9756913		Latch Asy, Rear		Appelez-nous	-
44	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 56.06
45	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
46	9755769		Tray, Hidden Bake Element		Appelez-nous	-
47	W10646923		Card, Insulator   (Replaces: 9759689)				$ 19.57
48	WP9760769		Element, Convection   (Replaces: 9758525)			Immediately	$ 337.88
49	WP9758925		Fan Motor, Convection   (Replaces: 3194261)				$ 334.93
50	4452226		Blade, Fan				$ 30.89
51	4452227		Nut				$ 33.98
52	WPW10134124		Cover, Fan   (Replaces: 9755775)			Immediately	$ 102.59
53	9755776		Bracket, Fan		Appelez-nous	-
54	9757311		Transformer				$ 123.09
55	8053915		Insulation, Vent   (Replaces: 8272613)				$ 13.06
55	WPW10208653		Insulation, Wrap   (Replaces: 8272616)			Immediately	$ 55.47
55	9755772		Insulation, Back		Appelez-nous	-
55	9757974		Insulation, Goc		Appelez-nous	-
55	3400876		Screw		Appelez-nous	-
