01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts

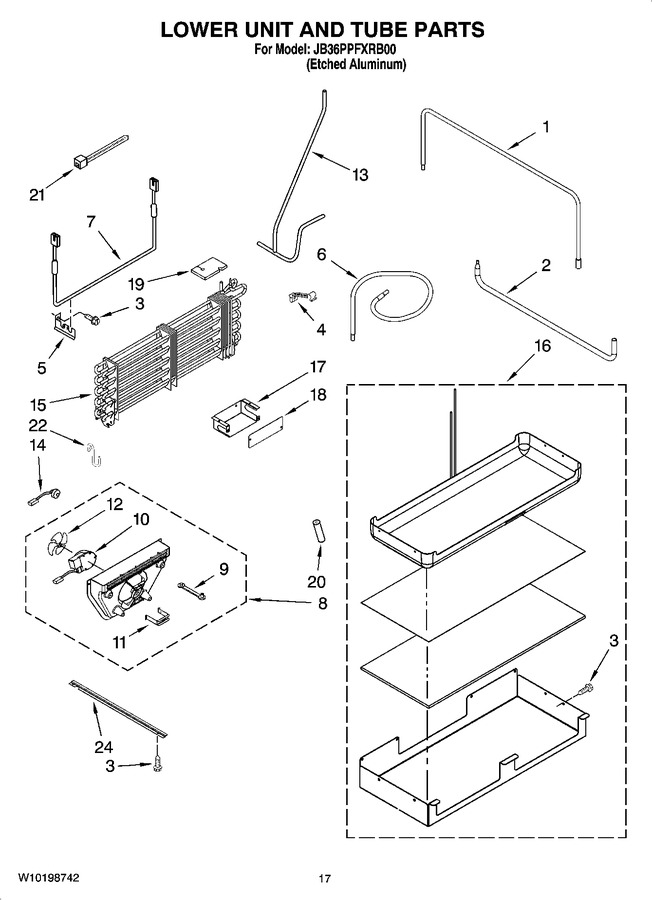

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309072		Tube, Transition (condenser)		Appelez-nous	-
2	W10388653		Tube, Transition (drier/restrictor)   (Replaces: 2309070)			Immediately	$ 40.48
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2307944		Clip		Appelez-nous	-
5	2307945		Bracket, Mounting		Appelez-nous	-
6	2309076		Tube, Suction				$ 136.59
7	WP2268393		Heater, Defrost   (Replaces: 2268393)				$ 168.19
8	2306178		Scroll Assembly		Appelez-nous	-
9	W11669856		Grommet, Motor   (Replaces: 2223986)			Immediately	$ 15.93
10	2259385		Motor, Fan				$ 84.74
11	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 159.27
12	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
13	2309073		Tube, Discharge   (Replaces: W10121368)				$ 84.17
14	WP2321803		Defrost Bi-metal   (Replaces: 2321803)				$ 136.87
15	2268391		Evaporator				$ 281.37
16	W11623101		Drain Pan Assembly   (Replaces: 2320615)			Immediately	$ 394.02
17	W10151288		Cover, Box		Appelez-nous	-
18	W10153595		Cover, Wiring		Appelez-nous	-
19	2306180		Block, Evaporator		Appelez-nous	-
20	2215648		Dampener, Heater				$ 13.21
21	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 8.30
22	2317920		Clip, Heater		Appelez-nous	-
24	2320554		Bracket, Drain Pan		Appelez-nous	-
