Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 W10132472 Cabinet, Trim (right Side) Appelez-nous -
3 WP1163283 Screw   (Replaces: 1163283) Special Order $ 7.19

4 2316686 Cabinet Trim, Bottom Appelez-nous -
5 W11624204 Screw   (Replaces: 486194) Special Order $ 14.02

6 2314019 Cabinet Trim, Top In-Stock Immediately $ 113.85

8 2005782 Cover, Hinge Special Order $ 12.04

9 2005925 Seal-trim, Side Special Order $ 83.72

10 W10132541 Cabinet Trim (left Side) Appelez-nous -
11 WP489464 Screw, 8-18 X 1/2   (Replaces: 489464) In-Stock Immediately $ 7.83

16 WPW10121451 Nutsert (4)   (Replaces: W10121451) In-Stock Immediately $ 7.65


    View Diagram in Separate Window     Print Icon   Print Part List

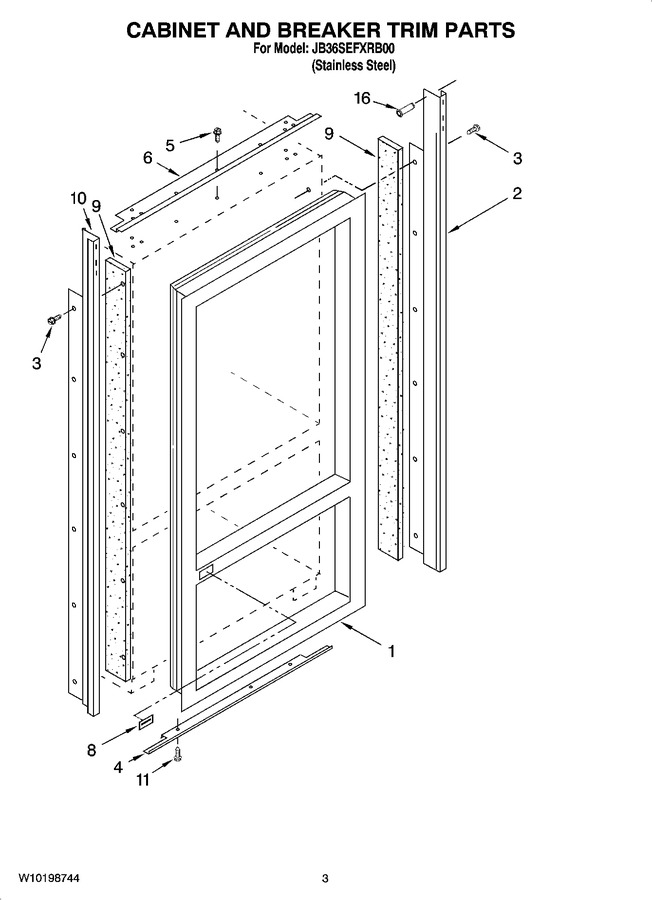

Diagram for JB36SEFXRB00
