SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Doors (inner)


06 - Doors (outer)


07 - Evaporator Area & Rollers


08 - Ice Maker


09 - Interior Cabinet & Freezer Shelves


10 - Pantry Assembly


11 - Refrigerator Shelves


12 - Supplemental Information


13 - Water Dispenser/water Tank/water Filter


14 - Wiring Information

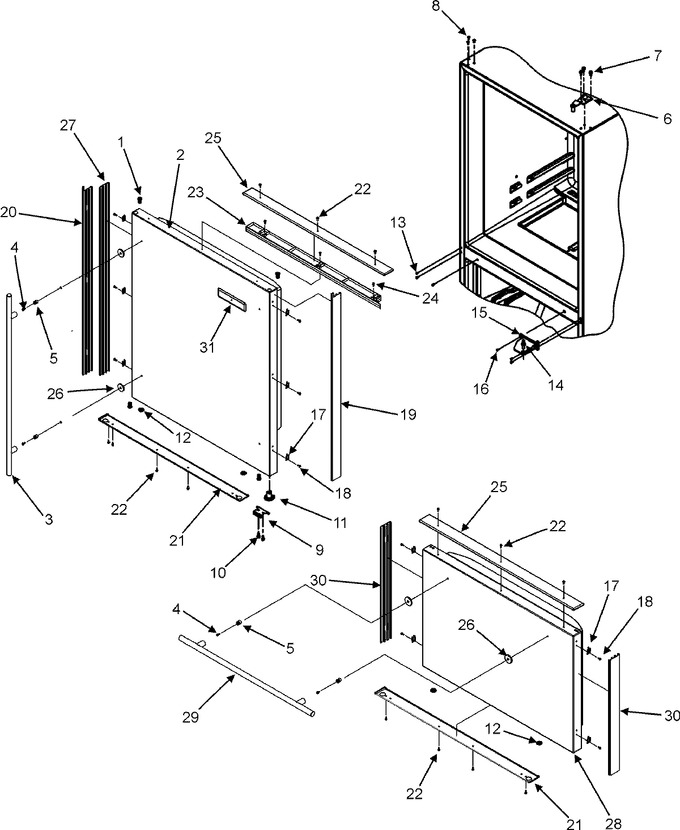

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67004977		Bushing, Door (wht)   (Replaces: 67004977)	10			$ 7.81
2	67002423		Door Assy., Ref. Foam (wht)	10	Appelez-nous	-
3	WP12850910		Handle Assy., Ref Door (stnls)   (Replaces: 67004780)	10			$ 275.89
4	340184		Screw   (Replaces: 67003115)	10			$ 13.44
5	67003114		Mount, Handle	10	Appelez-nous	-
6	67002519		Hinge, Top (rt-wht)	10	Appelez-nous	-
6	67002520		Hinge,top(lt-wht)	10	Appelez-nous	-
7	R9800670		Screw, Tf   (Replaces: M0238731)	10			$ 9.38
8	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)	10		Immediately	$ 5.98
9	12968202W		Stop, Door (wht)   (Replaces: 67003779)	10			$ 65.99
10	WPW10348409		Screw, Mounting   (Replaces: M0211533)	10		Immediately	$ 7.76
11	WP67003638		Closure, Door (wht)   (Replaces: 67003638)	10		Immediately	$ 7.76
12	10712401		Plug, Vent (wht)	10			$ 7.79
13	WP489349		Screw, Tf   (Replaces: M0239730)	10		Immediately	$ 7.88
14	WP67006642		Pin, Center Hinge   (Replaces: 67002734)	10			$ 7.93
15	W11689473		Hinge, Center (wht)   (Replaces: 67001168)	11			$ 66.47
15	67002959		Hinge, Center (wht)	10			$ 41.46
16	WP489349		Screw, Tf   (Replaces: M0239730)	10		Immediately	$ 7.88
17	67002451		Clip	10			$ 8.44
18	WP489399		Screw, Se   (Replaces: M0232929)	10			$ 6.95
19	67002201		Trim,vertical (rt-stnls)xx	10	Appelez-nous	-
20	67002435		Trim, Vertical (lt-stnls)	10	Appelez-nous	-
21	67002194		Trim, Door Bottom (stnls)	10	Appelez-nous	-
22	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)	10		Immediately	$ 14.05
23	12059101		Extension, Ref Dr (wht)	10	Appelez-nous	-
24	WP489474		Screw 1``   (Replaces: M0211021)	10		Immediately	$ 7.97
25	67002252		Trim, Door Top (stnls)	10	Appelez-nous	-
26	67003113		Spacer, Handle	10	Appelez-nous	-
27	67003116		Trim, Vertical (lt-stnls)	10	Appelez-nous	-
28	67002424		Door Assy., Frz. Foam (wht)	10	Appelez-nous	-
29	WP12850909		Handle Assy., Door (stnls)   (Replaces: 67004779)	10			$ 278.06
30	67002995		Trim, Fz Door Side (stnls)	10	Appelez-nous	-
31	67004548		Nameplate	10	Appelez-nous	-
