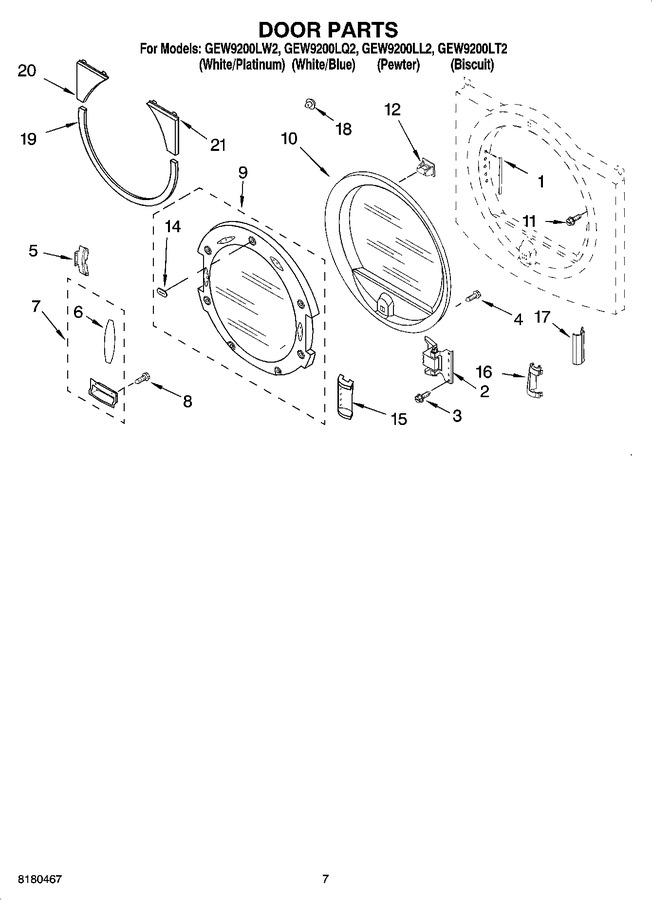

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8563855		Plug, Strip				$ 39.51
2	8559709		Door Hinge Assembly		Appelez-nous	-
3	342043		Screw, 10-32 X 3/8		Appelez-nous	-
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.19
5	8529539		Bracket, Handle		Appelez-nous	-
6	8529930		Pad, Door Handle		Appelez-nous	-
7	8529932		Handle, Door Assembly (lh) (platinum)				$ 34.98
7	8559736		Handle, Door Assembly (lh) (following Parts Not Included) Handle, Door Assembly (rh) (blue)				$ 52.54
7	3979775		Handle, Door Assembly (lh) (biscuit)		Appelez-nous	-
7	3980077		Handle, Door Assembly (lh) (pewter)		Appelez-nous	-
7	8529931		Handle, Door Assembly (lh) (blue)		Appelez-nous	-
7	8559738		Handle, Door Assembly (lh) (following Parts Not Included) Handle, Door Assembly (rh) (platinum)				$ 43.65
7	8559740		Handle, Door Assembly (lh) (following Parts Not Included) Handle, Door Assembly (rh) (biscuit)		Appelez-nous	-
7	8559742		Handle, Door Assembly (lh) (following Parts Not Included) Handle, Door Assembly (rh) (pewter)				$ 51.59
8	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
9	8541573		Door Assembly (outer) (blue)		Appelez-nous	-
9	3977873		Door Assembly (outer) (biscuit)		Appelez-nous	-
9	3980079		Door Assembly (outer) (pewter)		Appelez-nous	-
9	8541574		Door Assembly (outer) (platinum)		Appelez-nous	-
10	8546200		Door Assembly (inner) (includes \f1\fs24 Illus. 12)		Appelez-nous	-
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 7.67
12	WP3389441		Door Catch Assembly   (Replaces: 3389441)				$ 6.20
14	8529540		Badge, Assembly		Appelez-nous	-
15	8528287		Filler Handle (lh) (following Parts Not Included) Filler Handle (rh) (platinum)				$ 56.82
15	8528289		Filler Handle (lh) (platinum)				$ 56.51
15	8528286		Filler Handle (lh) (following Parts Not Included) Filler Handle (rh) (blue)				$ 7.11
15	3979772		Filler Handle (lh) (following Parts Not Included) Filler Handle (rh) (biscuit)		Appelez-nous	-
15	3979771		Filler Handle (lh) (biscuit)				$ 31.50
15	3980101		Filler Handle (lh) (following Parts Not Included) Filler Handle (rh) (pewter)		Appelez-nous	-
15	3980082		Filler Handle (lh) (pewter)				$ 6.79
15	8528288		Filler Handle (lh) (blue)				$ 8.09
16	8559714		Cover-hinge, Stationary (rh) (following Parts Not Included) Cover-hinge, Stationary (lh) (blue)		Appelez-nous	-
16	8559716		Cover-hinge, Stationary (rh) (following Parts Not Included) Cover-hinge, Stationary (lh) (biscuit)		Appelez-nous	-
16	8559718		Cover-hinge, Stationary (rh) (following Parts Not Included) Cover-hinge, Stationary (lh) (pewter)		Appelez-nous	-
16	8559713		Cover-hinge, Stationary (rh) (platinum)				$ 20.92
16	8559712		Cover-hinge, Stationary (rh) (following Parts Not Included) Cover-hinge, Stationary (lh) (platinum)				$ 20.18
16	8559717		Cover-hinge, Stationary (rh) (biscuit)		Appelez-nous	-
16	8559719		Cover-hinge, Stationary (rh) (pewter)		Appelez-nous	-
16	8559715		Cover-hinge, Stationary (rh) (blue)		Appelez-nous	-
17	8559549		Cover-hinge, Rotating (blue)				$ 31.04
17	8559724		Cover-hinge, Rotating (pewter)		Appelez-nous	-
17	8559723		Cover-hinge, Rotating (biscuit)				$ 20.93
17	8559722		Cover-hinge, Rotating (platinum)				$ 20.93
18	8547091		Clip, Trim Panel		Appelez-nous	-
19	8558684		Trim & Clip Assembly (lower) (biscuit)		Appelez-nous	-
19	8558683		Trim & Clip Assembly (lower) (platinum)		Appelez-nous	-
19	8558682		Trim & Clip Assembly (lower) (blue)		Appelez-nous	-
19	8558685		Trim & Clip Assembly (lower) (pewter)		Appelez-nous	-
20	8558687		Trim & Clip Assembly (lh) (platinum)		Appelez-nous	-
20	8558686		Trim & Clip Assembly (lh) (blue)		Appelez-nous	-
20	8558692		Trim & Clip Assembly (lh) (pewter)		Appelez-nous	-
20	8558690		Trim & Clip Assembly (lh) (biscuit)		Appelez-nous	-
21	8558689		Trim & Clip Assembly (rh) (platinum)		Appelez-nous	-
21	8558688		Trim & Clip Assembly (rh) (blue)		Appelez-nous	-
21	8558693		Trim & Clip Assembly (rh) (pewter)		Appelez-nous	-
21	8558691		Trim & Clip Assembly (rh) (biscuit)		Appelez-nous	-
