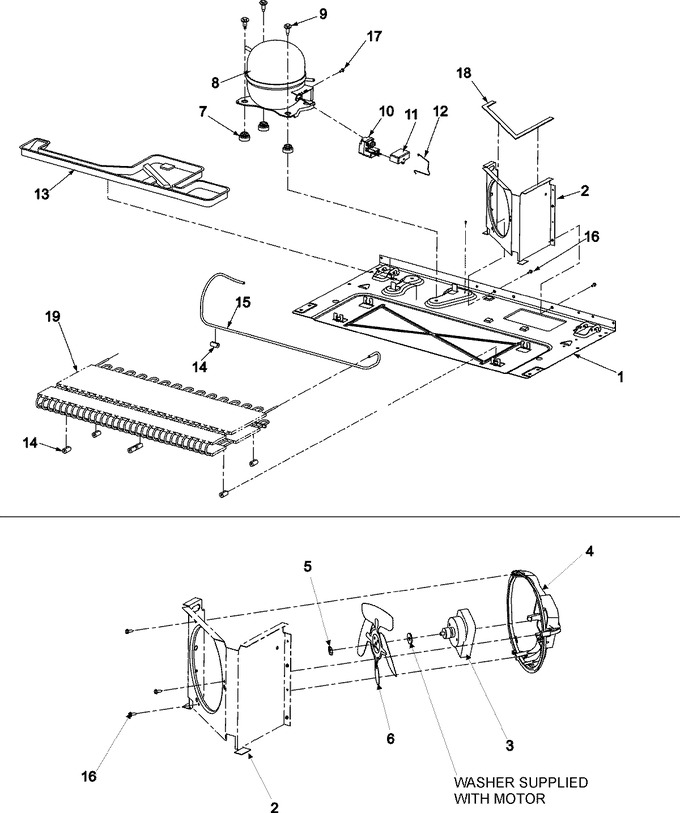

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67001512		Pan, Base	10	Appelez-nous	-
2	12687101		Shroud, Condenser	10	Appelez-nous	-
3	12628701		Motor, Condenser Fan (ecm)	10	Appelez-nous	-
4	67003644		Brkt, Ecm Cond Motor	10	Appelez-nous	-
5	WP486692		Nut, Ecm Motor   (Replaces: 12632601)	10			$ 7.82
6	WP12587601		Blade, Cond Fan   (Replaces: 12587601)	10			$ 126.67
7	WPW10169124		Grommet, Compressor   (Replaces: 67003493)	10		Immediately	$ 7.19
8	W10160407		Compressor, Tpg1370yxa(bm)   (Replaces: 67003762)	10			$ 599.92
9	M0221523		Screw, Shldr	10	Appelez-nous	-
10	W10613606		Overload/relay W/capacitor   (Replaces: 67003764)	10		Immediately	$ 86.59
11	WP65889-4		Capacitor   (Replaces: C8931612)	10		Immediately	$ 61.14
12	12576801		Strap, Bale	10	Appelez-nous	-
13	12619101		Pan, Drain	10	Appelez-nous	-
14	67005680		Grommet, Condenser   (Replaces: 12578601)	10			$ 21.05
15	67002494		Tube, Discharge	10	Appelez-nous	-
16	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.95
17	12992301		Screw, Tf   (Replaces: M0231604)	10			$ 7.32
18	WP854334		Seal   (Replaces: 61003210)	10			$ 13.28
19	WP67006131		Condenser   (Replaces: 12560503ED)	10			$ 366.74
20	10699602		Tubing, Damper 1.6	10	Appelez-nous	-
21	67004734		Harness, Mc	10	Appelez-nous	-
