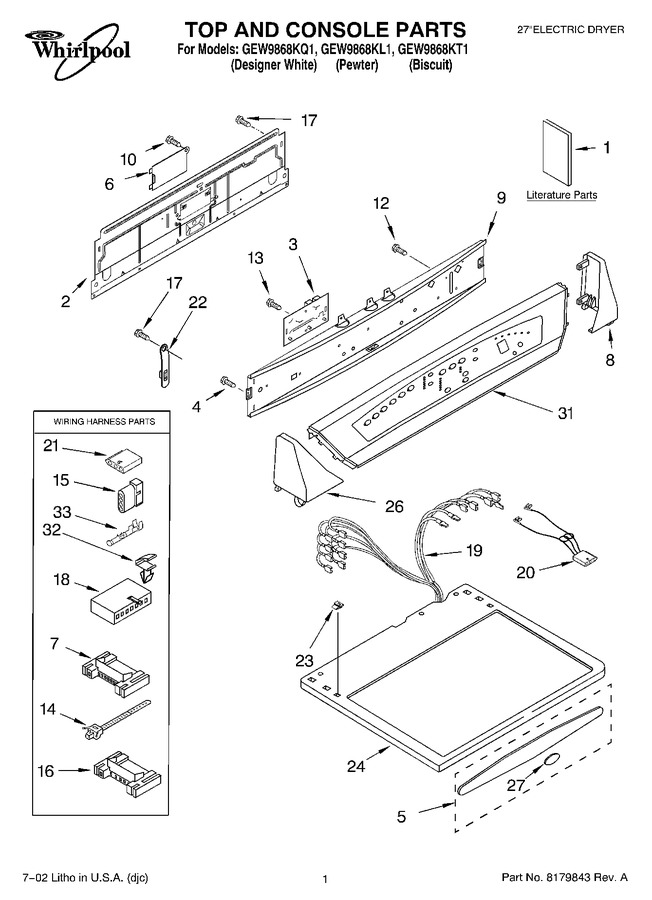

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3979716 | Literature Parts (label, Wiring Diagram) |
|
- | |||||
| 1 | LIT3979621 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT3979171 | Literature Parts (instructions Installation) |
|
- | |||||
| 1 | LIT8528148 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 2 | 8274338 | Panel, Rear Console |
|
- | |||||
| 3 | 3978916 | Control Board |
|
- | |||||
| 4 | WP304231 | Screw, 8-18 X 1/2 (Replaces: 304231) |
|
Immediately | $ 7.75 | ||||
| 5 | 8521944 | Medallion Assembly (pewter) |
|
- | |||||
| 5 | 8521943 | Medallion Assembly (sage) |
|
- | |||||
| 6 | WPW10119283 | Cover, Terminal Block (Replaces: 8317342) |
|
$ 128.35 | |||||
| 7 | 3395683 | Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 8 | 8299687 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 8 | 8299688 | Cap, End (r.h.) (pewter) |
|
- | |||||
| 8 | 8299686 | Cap, End (r.h.) (white) |
|
- | |||||
| 9 | 8299690 | Bracket, Control |
|
- | |||||
| 10 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.82 | ||||
| 12 | 3400073 | Screw, 10-24 X 5/16 |
|
- | |||||
| 13 | 3400826 | Screw, 8-18 X 3/4 |
|
- | |||||
| 14 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 31.84 | |||||
| 15 | 353424 | Connector |
|
$ 18.95 | |||||
| 16 | 2203186 | Connector |
|
$ 12.55 | |||||
| 17 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 18 | 3936150 | Connector, 7-circuit |
|
$ 77.60 | |||||
| 19 | 8529975 | Harness, Electric |
|
- | |||||
| 20 | WP3406653 | Sensor, Harness (Replaces: 3406653) |
|
Immediately | $ 151.96 | ||||
| 21 | 3936144 | Connector (3-circuit) |
|
$ 20.21 | |||||
| 22 | WP8568314 | Strap, Console (Replaces: 8318255) |
|
$ 7.78 | |||||
| 23 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 24 | 3978832 | Top (white) |
|
- | |||||
| 24 | 3978837 | Top (pewter) |
|
- | |||||
| 24 | 3978833 | Top (biscuit) |
|
- | |||||
| 26 | 8299683 | Cap, End (l.h.) (white) |
|
- | |||||
| 26 | 8299685 | Cap, End (l.h.) (pewter) |
|
- | |||||
| 26 | 8299684 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 27 | 8316751 | Medallion |
|
- | |||||
| 31 | 3978825 | Panel, Console (includes Keyswitch) (pearl) |
|
$ 325.25 | |||||
| 31 | 3978826 | Panel, Console (includes Keyswitch) (pewter) |
|
$ 318.60 | |||||
| 32 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 33 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| LIT677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- |
