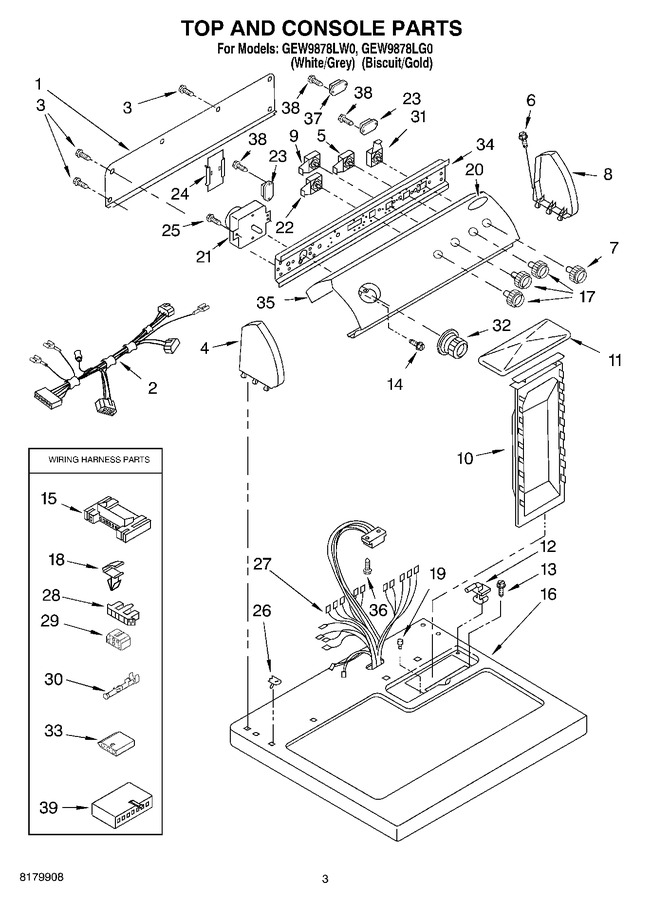

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
2	8283135		Harness, Console		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
5	3405151		Switch, Signal				$ 193.40
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
7	8316541		Knob, Push To Start (gew9878lw0)		Appelez-nous	-
7	8316546		Knob, Push To Start (gew9878lg0)		Appelez-nous	-
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
9	3405152		Switch, Wrinkle Shield				$ 131.07
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	8283380		Cover, Lint Screen (biscuit)		Appelez-nous	-
11	8283378		Cover, Lint Screen (white)				$ 44.80
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding				$ 13.22
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8271392		Top (biscuit)		Appelez-nous	-
16	8271390		Top (white)		Appelez-nous	-
17	WP8538957		Knob, Control (3) (gew9878lw0)   (Replaces: 8316540)				$ 55.74
17	8316545		Knob, Control (3) (gew9878lg0)		Appelez-nous	-
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
19	297535		Bumper, Lint Lid		Appelez-nous	-
20	3955776		Medallion		Appelez-nous	-
21	WP8299771		Timer, 60 Hz.   (Replaces: 8299771)				$ 331.30
22	8299970		Switch, Temperature				$ 193.95
23	WP3405281		Power Relay (2)   (Replaces: 3405281)			Immediately	$ 54.85
24	3976623		Control Board		Appelez-nous	-
25	WPW10139210		Screw, Mounting (8-18 X 5/16)   (Replaces: 3390646)				$ 7.50
26	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
27	8299897		Harness, Wiring		Appelez-nous	-
28	3397269		Connector, Timer				$ 25.55
29	3347243		Connector 6-circuit		Appelez-nous	-
30	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
31	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
32	8316549		Timer Knob Assembly (gew9878lg0)		Appelez-nous	-
32	WP8557455		Timer Knob Assembly (gew9878lw0)   (Replaces: 8316538)				$ 56.77
33	3936144		Connector				$ 20.21
34	8271418		Bracket, Control				$ 57.15
35	8532634		Panel, Control (includes Illus. 20) (gold)		Appelez-nous	-
35	8532633		Panel, Control (includes Illus. 20) (grey)		Appelez-nous	-
36	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
37	WP8566493		Heat Relay   (Replaces: 697812)				$ 90.35
38	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3388228)				$ 6.95
39	3936150		Connector, 7-circuit				$ 77.60
