SELECT A DIAGRAM

01 - Cabinet Parts


02 - Top And Console Parts

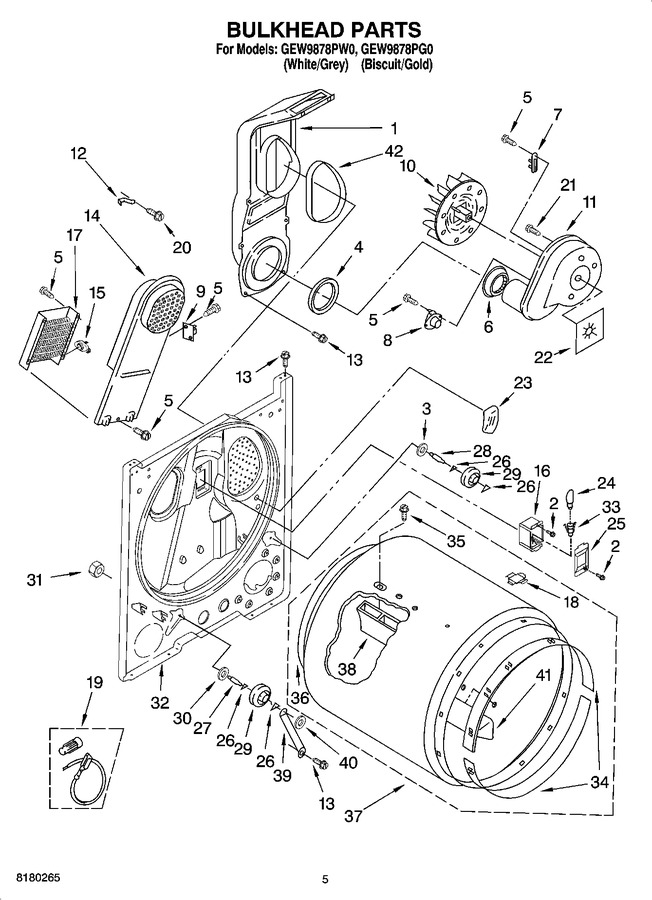

03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11117429		Lint Chute Assembly   (Replaces: 348368)				$ 175.01
2	WP488729		Screw, 8-15 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
3	WP3388703		Washer-support   (Replaces: 3388703)				$ 7.47
4	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 18.23
5	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
6	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 22.29
7	WP3390719		Thermal-fuse   (Replaces: 3390719)			Immediately	$ 31.57
8	WP8577274		Thermistor   (Replaces: 3976615)			Immediately	$ 43.61
9	279816		Thermal Cut-off (includes Illus. 15)   (Replaces: 3977393)			Immediately	$ 60.71
10	WP694089		Wheel, Blower   (Replaces: 694089)			Immediately	$ 37.66
11	8557385		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 3398161)				$ 14.33
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
14	WP8541818		Box, Heater   (Replaces: 3397566)				$ 234.81
15	WP3404153		Thermostat, 180~f (82.2~c)   (Replaces: 3404153)				$ 132.49
16	3977373		Bracket, Drum Light				$ 105.79
17	WP3401338		Element, Heater   (Replaces: 3401338)				$ 326.24
18	8066086		Drum, Hole Plug				$ 10.75
19	279457		Terminal Wire Kit (for Heater Element Wiring Harness Repair)			Immediately	$ 7.92
20	WP489463		Screw, 8-18 X 5/8   (Replaces: 489463)				$ 7.82
21	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
22	3394196		Seal, Blower				$ 5.65
23	W10816105		Pad, Sensor   (Replaces: 3976479)				$ 152.01
24	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 13.66
25	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 31.09
26	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
27	WPW10359270		Shaft, L.h.   (Replaces: 3399506)			Immediately	$ 72.71
28	WPW10359269		Shaft, R.h.   (Replaces: 3399507)			Immediately	$ 47.30
29	349241T		Roller, Support   (Replaces: 3397588)			Immediately	$ 29.53
30	WP348197		Washer, Support   (Replaces: 348197)				$ 7.19
31	WP3359452		Nut, 3/8-16   (Replaces: 3359452)			Immediately	$ 7.19
32	W10828905		Bulkhead   (Replaces: 3403414)			Immediately	$ 359.30
33	W11700522		Socket Assembly   (Replaces: 3403634)				$ 73.15
34	279441		Ring, Bearing (2)   (Replaces: 692526)			Immediately	$ 66.22
35	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.00
36	W10612022		Seal, Rear Drum   (Replaces: 3406130)			Immediately	$ 57.15
37	W10899578		Drum Assembly   (Replaces: 695587)				$ 357.65
38	WP692490		Baffle, Drum (2)   (Replaces: 692490)				$ 159.27
39	W11684613		Bracket, Support   (Replaces: 3976434)				$ 20.94
40	WP90296		Clip   (Replaces: 90296)				$ 7.85
41	WP3403636		Baffle, Drum (1)   (Replaces: 3403636)				$ 138.66
42	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
42	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
42	WP339956		Seal   (Replaces: 339956)			Immediately	$ 8.63
42	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45
42	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
42	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
42	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
42	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
42	N/A		Accessory Parts		Appelez-nous	-
42	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
42	3406839		Dry Rack			Immediately	$ 65.68
42	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 11.75

    View Diagram in Separate Window       Print Part List
