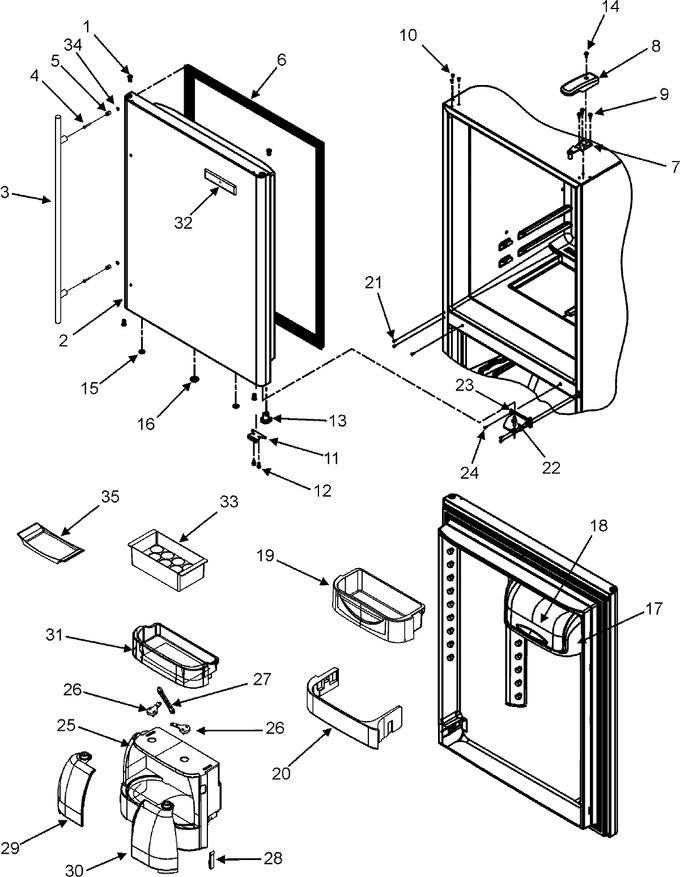

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) (Replaces: 67003369) | 10 |
|
$ 19.89 | ||||
| 2 | 67004778 | Door Assy., Ref. Foam (stnls) | 10 |
|
- | ||||
| 3 | 67005389 | Handle, Door | 10 |
|
$ 178.76 | ||||
| 4 | 340184 | Screw (Replaces: 67003115) | 10 |
|
$ 12.70 | ||||
| 5 | 67003114 | Mount, Handle | 10 |
|
- | ||||
| 6 | WPW10436248 | Gasket, Ref Door (blk) (Replaces: 67003553) | 10 |
|
$ 301.64 | ||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 42.42 | |||
| 8 | 67001012 | Cover, Top Hinge (blk) | 10 |
|
$ 44.74 | ||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) | 10 |
|
$ 9.52 | ||||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 7.34 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
Immediately | $ 13.28 | |||
| 12 | WPW10348409 | Screw, Mounting (Replaces: M0211533) | 10 |
|
Immediately | $ 7.38 | |||
| 13 | WP67003639 | Closure, Door (blk) (Replaces: 67003639) | 10 |
|
Immediately | $ 81.29 | |||
| 14 | WP8281196 | Screw-mach (Replaces: M0202327) | 10 |
|
Immediately | $ 6.80 | |||
| 15 | 67004838 | Plug, Vent (blk) | 10 |
|
$ 10.09 | ||||
| 16 | A3080001 | Plug, Button (blk) | 10 |
|
- | ||||
| 17 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 79.21 | |||
| 18 | WP67003637 | Door, Dairy (Replaces: 67003637) | 10 |
|
Immediately | $ 74.40 | |||
| 19 | 67004040 | Bucket, Ref Dr (med) | 10 |
|
$ 86.39 | ||||
| 20 | 67004595 | Retainer, Door | 10 |
|
- | ||||
| 21 | WP489349 | Screw, Tf (Replaces: M0239730) | 10 |
|
Immediately | $ 7.59 | |||
| 22 | WP67006642 | Pin, Center Hinge (Replaces: 67002734) | 10 |
|
$ 7.90 | ||||
| 23 | WP12607104ED | Hinge, Center (blk) (Replaces: 67001167) | 10 |
|
$ 150.62 | ||||
| 24 | W11573362 | Screw, T. F. (Replaces: M0226233) | 10 |
|
$ 13.25 | ||||
| 25 | 67004597 | Frame, Chiller | 10 |
|
- | ||||
| 26 | 67002293 | Linkage, Chiller | 10 |
|
$ 11.76 | ||||
| 27 | 67004601 | Linkage, Chiller Ctr | 10 |
|
- | ||||
| 28 | 67004602 | Hook, Chiller Frame | 10 |
|
- | ||||
| 29 | 67004599 | Door, Chiller (lt) | 10 |
|
- | ||||
| 30 | 67004598 | Door, Chiller (rt) | 10 |
|
$ 36.77 | ||||
| 31 | 67004600 | Bucket, Chiller | 10 |
|
- | ||||
| 32 | 67004548 | Nameplate | 10 |
|
- | ||||
| 33 | 67215-2 | Tray, Egg | 10 |
|
- | ||||
| 34 | 67004789 | Washer | 10 |
|
$ 6.06 | ||||
| 35 | 29936-2 | Tray, Butter | 10 |
|
- |
