SELECT A DIAGRAM

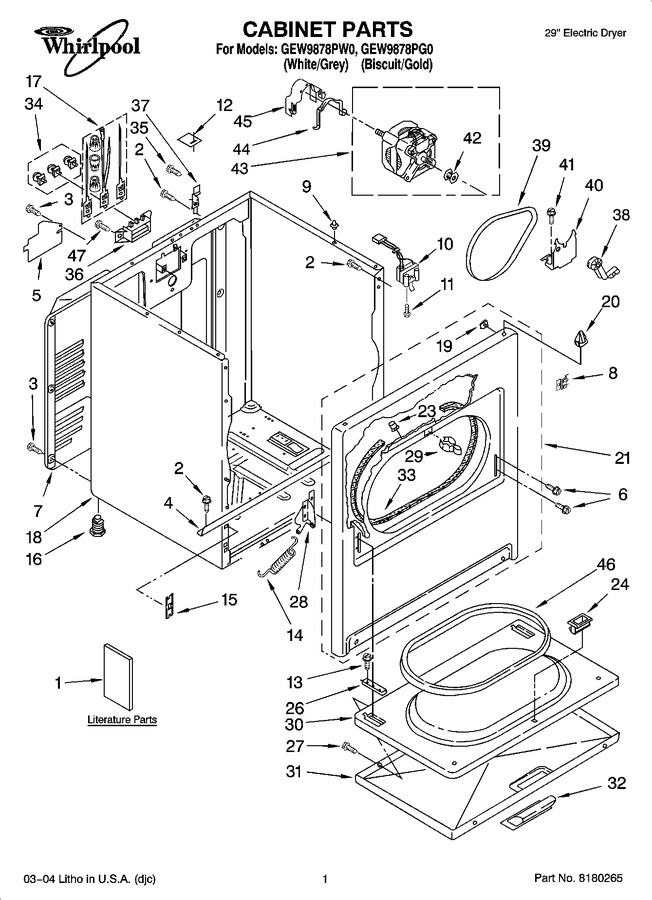

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8535829		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8522243		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8533771		Literature Parts (sheet, Cycle Feature)		Appelez-nous	-
1	LIT677818		Literature Parts (dryer)		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT8535825		Literature Parts (sheet, Feature Resource Saver)		Appelez-nous	-
1	LIT8533775		Literature Parts (tech Sheet)		Appelez-nous	-
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
3	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
4	8541400		Bracket, Cabinet		Appelez-nous	-
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 629.75
6	342043		Screw, 10-32 X 3/8		Appelez-nous	-
7	280043		Panel, Rear   (Replaces: 3396805)				$ 358.37
8	WPW10041960		Clip, Door Spring   (Replaces: 8546676)			Immediately	$ 42.70
9	98669		Locator, Top				$ 12.03
10	WP3406107		Door, Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
12	18849		Pad, Top Hinge				$ 21.15
13	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
14	WPW10041960		Spring, Door (2)   (Replaces: 8541401)			Immediately	$ 42.70
15	W10854425		Clip, Front Panel (2)   (Replaces: 3394083)			Immediately	$ 16.34
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
17	279318		Terminal, Tinned & Brass (3) (includes Illus. 34)			Immediately	$ 106.04
18	8530606		Cabinet (includes Illus. 4) (biscuit)		Appelez-nous	-
18	8533643		Cabinet (includes Illus. 4) (white)   (Replaces: 8530603)				$ 419.22
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.96
20	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 13.31
21	279891		Panel, Front (biscuit)   (Replaces: 3977244)		Appelez-nous	-
21	279443		Panel, Front (white)   (Replaces: 695620)				$ 405.51
23	279220		Clip, Felt Pad (3)   (Replaces: 685203)				$ 23.55
24	WP3389441		Catch, Door Assembly   (Replaces: 3389441)				$ 6.20
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 22.46
27	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.55
28	WP8066057		Hinge, L.h.   (Replaces: 8066057)				$ 100.95
28	WP8066056		Hinge, R.h.   (Replaces: 8066056)			Immediately	$ 103.36
29	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
30	WP695737		Door, Rear   (Replaces: 695737)				$ 267.29
31	3977241		Door, Front (biscuit)		Appelez-nous	-
31	WP3393549		Door, Front (white)   (Replaces: 3393549)				$ 185.34
32	WP348721		Handle, Door (white)   (Replaces: 690270)				$ 81.78
32	3977242		Handle, Door (biscuit)		Appelez-nous	-
33	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 78.78
34	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 55.66
35	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 8.20
36	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
37	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 8.21
38	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
39	341241		Belt, Drive   (Replaces: 8066065)			Immediately	$ 18.15
40	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
41	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 14.04
42	WP8066184		Pulley, 60 Hz.   (Replaces: 3394341)			Immediately	$ 51.02
43	279827		Motor Assembly 60 Hz.   (Replaces: 8538262)			Immediately	$ 191.95
44	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
45	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 8.21
46	W10906683		Seal, Door   (Replaces: 3390731)				$ 134.96
47	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87

    View Diagram in Separate Window       Print Part List
