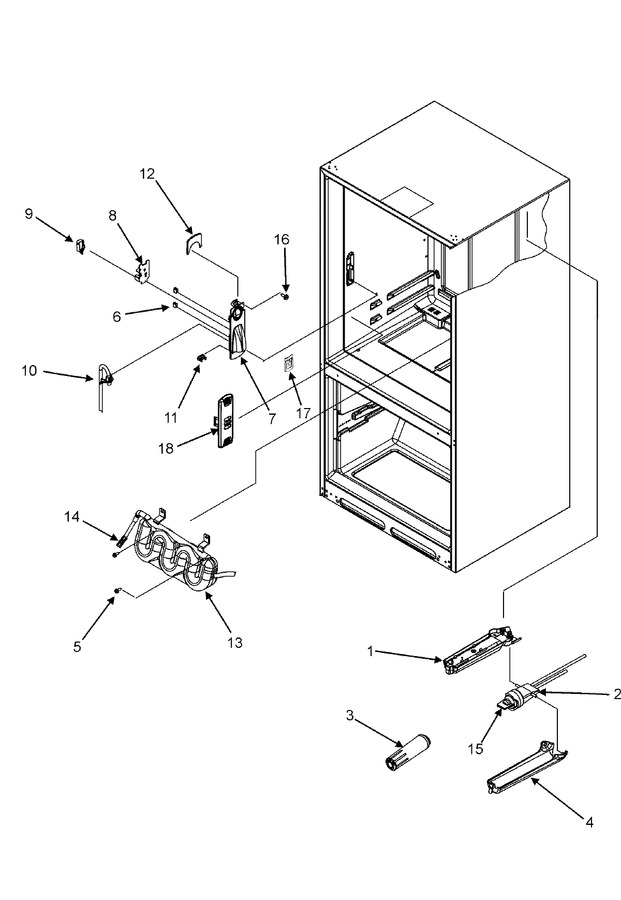

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67001668		Plate, Filter Backing   (Replaces: 67001668)	10		Immediately	$ 15.95
2	WP67006524		Head, Water Filter (w/tubing)   (Replaces: 67006524)	10		Immediately	$ 134.07
3	EDR4RXD1B		Filter, Water Puriclean Ii   (Replaces: 67006467)	10		Immediately	$ 49.99
4	WP12568001		Cover, Filter   (Replaces: 12568001)	10		Immediately	$ 86.76
5	67006425		Screw, Sm   (Replaces: 67006400)	10		Immediately	$ 6.95
6	W10819546		Clip, Facade   (Replaces: B8390302)	10			$ 12.51
7	67002979		Facade, Dispenser	10	Appelez-nous	-
8	12707303SP		Plate, Switch   (Replaces: 67002742)	10			$ 76.59
9	WP12575501		Switch, Limit   (Replaces: 12575501)	10			$ 68.90
10	W11677725		Guide-wtrline 33   (Replaces: 67003827)	10		Immediately	$ 23.58
11	67002816		Clip, Waterline	10			$ 18.24
12	W11519867		Facade, Dispenser Top   (Replaces: 67005674)	10		Immediately	$ 26.35
13	67004609		Tank, Water	10	Appelez-nous	-
14	WP2300868		Union, Tube (5/16``-5/16``)   (Replaces: 61006182)	10		Immediately	$ 29.05
15	W11395888		Plug, Bypass   (Replaces: 12664501)	10		Immediately	$ 50.72
16	67006425		Screw, Sm   (Replaces: 67006400)	10		Immediately	$ 6.95
17	67005130		Sump, Tray	10	Appelez-nous	-
18	67006110		Cover, Chiller Vent	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
