Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10671238 Rail, Center Crisper   (Replaces: 12530701) In-Stock Immediately $ 112.82

2 WPW10231343 Trim, Crisper   (Replaces: W10231343) In-Stock Immediately $ 99.65

3 WP67005864 Slide, Humidity Control   (Replaces: 12530805SP) In-Stock Immediately $ 7.81

4 12896402 Basket, Freezer Upper Appelez-nous -
5 W10143561 Basket, Freezer (lower) Appelez-nous -
6 W10656985 Trim, Pantry Front   (Replaces: W10231333) Special Order $ 131.12

7 W10709795 Screw (2)   (Replaces: 12990515) Special Order $ 13.13

8 12659608 Divider, Basket Lower Appelez-nous -
9 12645017 Pan, Pantry Appelez-nous -
10 12693802N Divider, Basket (upper) Appelez-nous -
11 67006425 Screw   (Replaces: 12990513) In-Stock Immediately $ 6.95

12 WP67005920 Front-crisper Pan   (Replaces: 12802302SP) In-Stock Immediately $ 74.59

13 WP67001716 Hook, Ladder   (Replaces: 12531802) In-Stock Immediately $ 10.61

14 WP67001719 Track, Deli Drawer   (Replaces: 12531901) In-Stock Immediately $ 8.56

15 12990601N Screw Appelez-nous -
16 WP67002633 Pan, Crisper   (Replaces: 12530505SP) In-Stock Immediately $ 149.12

17 WP12227303WD Brace, Crisper   (Replaces: 12227303WD) Special Order $ 105.95

18 WPW10568041 Frame, Crisper   (Replaces: 12530401SP) In-Stock Immediately $ 137.23

19 WP67006878 Glass, Crisper   (Replaces: 12204822) In-Stock Immediately $ 185.19

20 67001073 Ladder, Center   (Replaces: 12435807) Special Order $ 54.18

21 12710602 Ladder, Side Appelez-nous -
22 WP67001721 Support, Lh   (Replaces: 12531001) In-Stock Immediately $ 8.70

23 WP67001722 Support, Rh   (Replaces: 12531002) In-Stock Immediately $ 8.93

24 W11402521 Shelf, Glide Out (4)   (Replaces: 12463310V) Special Order $ 220.55

25 12531502 Slide,pantry Appelez-nous -
26 12531401 Bar, Control Appelez-nous -
27 WP12531601 Tunnel, Pantry   (Replaces: 12531601) Special Order $ 10.51

28 12531701 Gasket, Pantry Appelez-nous -
31 10448903N Rack, Bottle Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

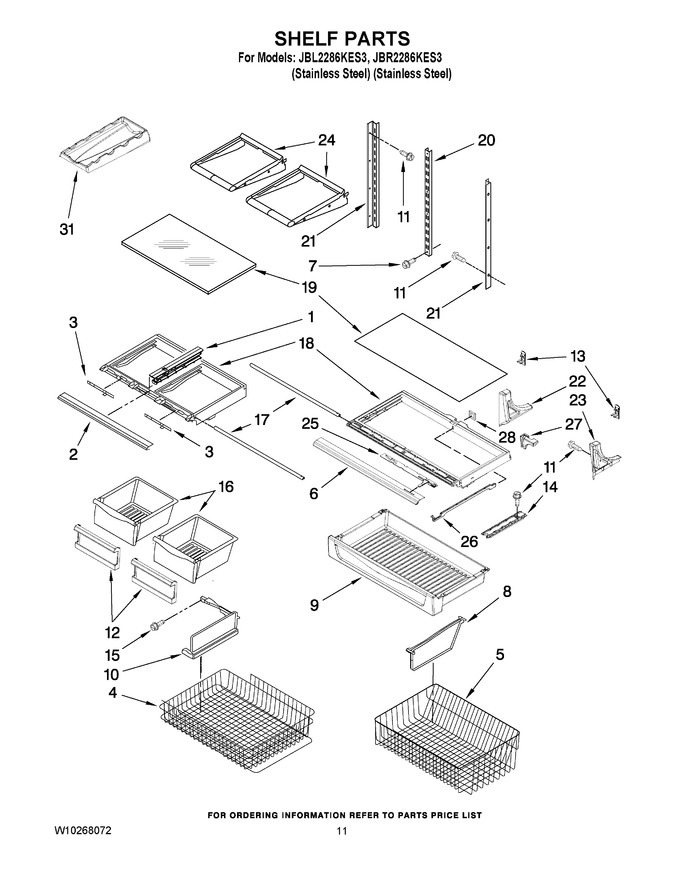

Diagram for JBR2286KES3
