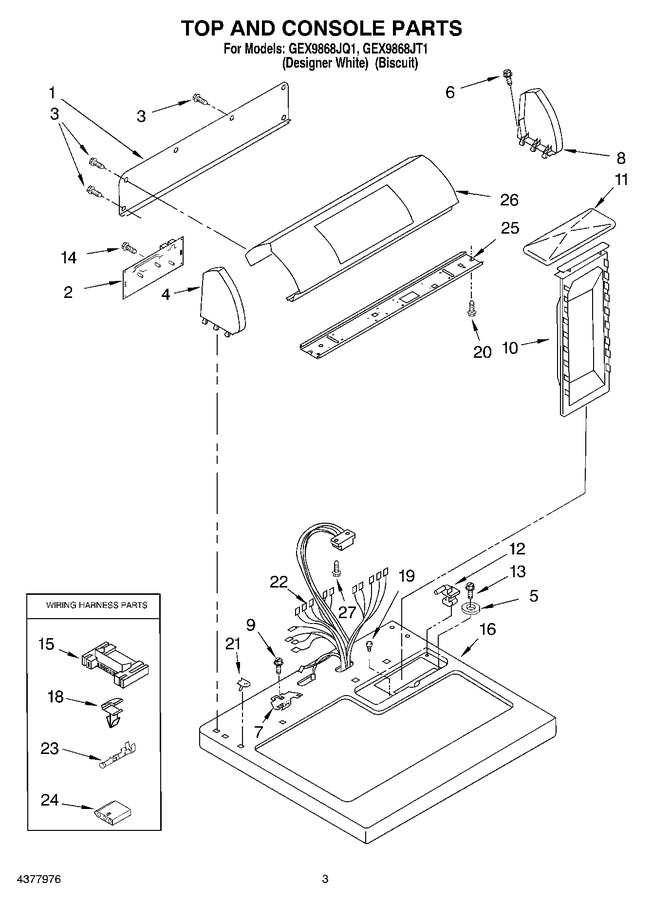

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 128.87 | |||||
| 2 | 3978802 | Control Board |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 8271368 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 4 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 5 | 237446 | Washer |
|
- | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.11 | |||||
| 7 | 3355753 | Clip, Ground |
|
- | |||||
| 8 | 8271362 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 8 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 9 | WP355214 | Screw, 8-18 X 5/16 (Replaces: 3393918) |
|
Immediately | $ 8.07 | ||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 8283380 | Cover, Lint Screen (biscuit) |
|
- | |||||
| 11 | 8283378 | Cover, Lint Screen (white) |
|
$ 44.80 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 7.72 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 3400826 | Screw, 8-18 X 3/4 |
|
- | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 16 | 8271397 | Top (biscuit) |
|
- | |||||
| 16 | 8271395 | Top (white) |
|
- | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 19 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 20 | WPW10139210 | Screw, Mounting (8-18 X 5/16) (Replaces: 3390646) |
|
$ 7.50 | |||||
| 21 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 22 | 8299902 | Harness, Wiring |
|
- | |||||
| 23 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 24 | 3936144 | Connector |
|
$ 20.21 | |||||
| 25 | 8274305 | Bracket, Control |
|
- | |||||
| 26 | 8274399 | Panel, Control (biscuit) |
|
- | |||||
| 26 | 8274398 | Panel, Control (white) |
|
- | |||||
| 27 | 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | |||||
| 27 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 27 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 27 | 4392065 | Dryer Repair Kit (Replaces: 279948) |
|
Immediately | $ 53.85 | ||||
| 27 | 4392899 | Biscuit |
|
Immediately | $ 26.45 | ||||
| 27 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 27 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 27 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 27 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- |
