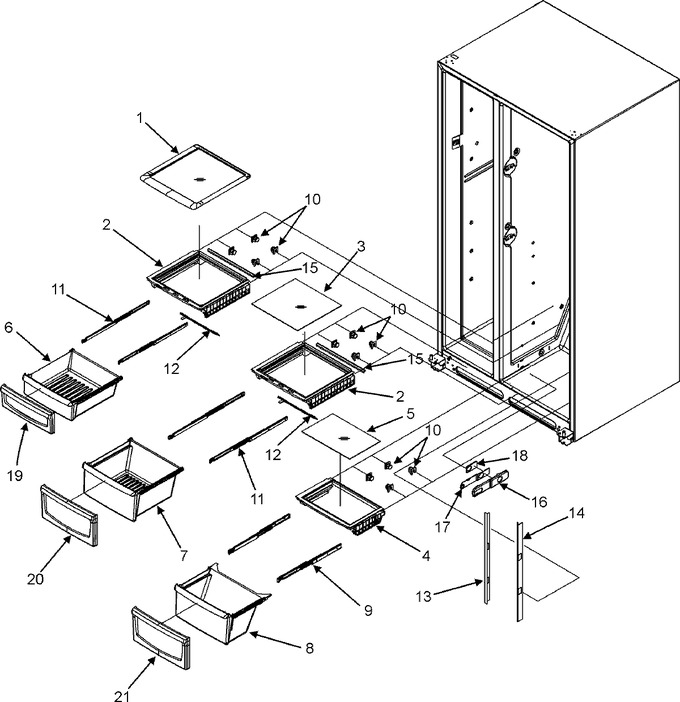

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004130		Shelf, Crisper Top	10	Appelez-nous	-
2	67004140		Frame, Crisper Shelf	10	Appelez-nous	-
3	67004246		Glass, Crisper Shelf	10	Appelez-nous	-
4	67004247		Frame, Meat Shelf	10	Appelez-nous	-
5	67004132		Glass, Meat Shelf	10	Appelez-nous	-
6	67005820		Pan, Sm Crisper	11	Appelez-nous	-
6	67004532		Pan, Sm Crisper	10	Appelez-nous	-
7	67005412		Pan, Lg Crisper	11	Appelez-nous	-
7	67004312		Pan, Lg Crisper	10	Appelez-nous	-
8	67004206		Pan, Meat	10	Appelez-nous	-
8	67005639		Pan, Meat	11	Appelez-nous	-
9	67005620		Glide, Meat Frame   (Replaces: 67004488)	10			$ 306.41
9	67005898		Glide, Meat Frame (w/bumper)	11			$ 39.39
9	M0213129		Screw	10	Appelez-nous	-
10	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	10			$ 10.31
11	67004489		Glide, Crisper Frame	10	Appelez-nous	-
11	67005620		Glide, Crisp Frame (w/bumper)	11			$ 306.41
11	M0213129		Screw	10	Appelez-nous	-
12	67004885		Slide, Control (wht)	10	Appelez-nous	-
13	67004170		Pillar (lt)	10	Appelez-nous	-
14	67004171		Pillar (rt)	10	Appelez-nous	-
15	67004249		Seal, Crisper Frame (rear)	10	Appelez-nous	-
16	67004175		Housing, Temp. Control	10	Appelez-nous	-
17	67004176		Slide, Temp. Control	10	Appelez-nous	-
18	67004177		Gasket, Temp. Control	10	Appelez-nous	-
19	67006040		Front, Sm Crisp Pan	10	Appelez-nous	-
20	67006039		Front, Lg Crisp Pan	10	Appelez-nous	-
21	67004426		Front, Meat Pan	10	Appelez-nous	-
