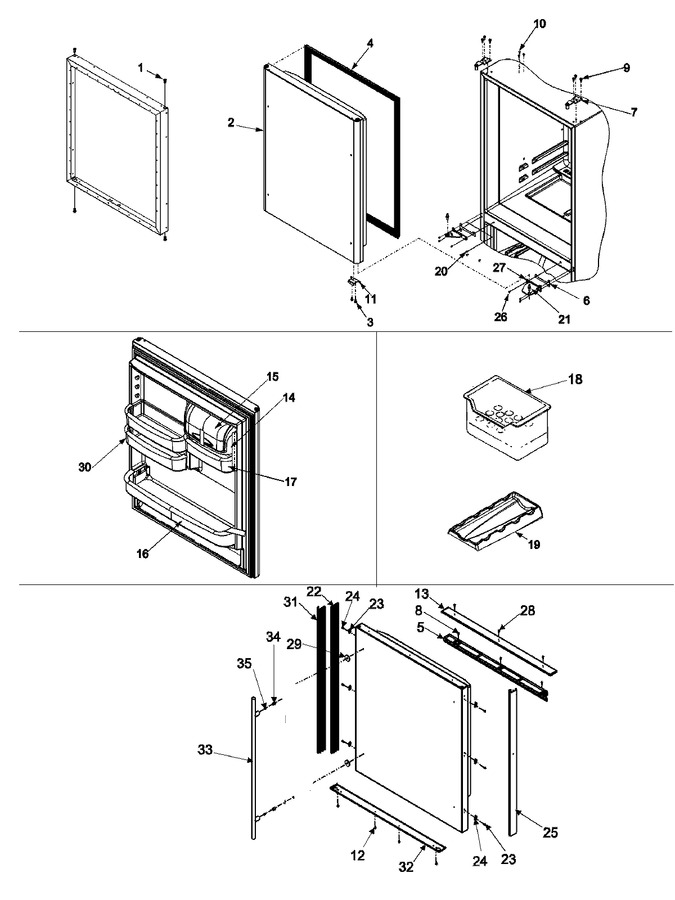

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Door (wht) (Replaces: 67003057) |
|
$ 7.81 | |||||
| 1 | 10961001 | Bushing, Door (wht) |
|
- | |||||
| 2 | 67002423 | Door Assy., Ref. Foam (wht) |
|
- | |||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 7.76 | ||||
| 4 | W10443317 | Gasket, Ref Door (wht) (Replaces: 12683805W) |
|
$ 349.32 | |||||
| 5 | 12059101 | Extension, Ref Dr (wht) |
|
- | |||||
| 6 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) |
|
Immediately | $ 8.00 | ||||
| 7 | 67002519 | Hinge, Top (rt-wht) |
|
- | |||||
| 7 | 67002520 | Hinge,top(lt-wht) |
|
- | |||||
| 8 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 7.97 | ||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 9.38 | |||||
| 10 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 11 | 12968202W | Stop, Door (wht) (Replaces: 10447108) |
|
$ 65.99 | |||||
| 12 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 7.76 | ||||
| 13 | 67002252 | Trim, Door Top (stnls) |
|
- | |||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 83.82 | ||||
| 15 | WP67003637 | Door, Dairy (Replaces: 67002842) |
|
Immediately | $ 78.73 | ||||
| 16 | 67003027 | Retainer, Ref Dr |
|
- | |||||
| 17 | WPW10371195 | Bucket, Med Ref Dr (Replaces: 67003110) |
|
Immediately | $ 83.21 | ||||
| 18 | 67215-2 | Tray, Egg |
|
- | |||||
| 19 | 67001656 | Trivet, Bottle |
|
$ 69.04 | |||||
| 20 | WP489349 | Screw, Tf (Replaces: M0239730) |
|
Immediately | $ 7.88 | ||||
| 21 | 12002311 | Pin, Hinge (ctr) (Replaces: 10351003) |
|
$ 7.85 | |||||
| 22 | 67003116 | Trim, Vertical (lt-stnls) |
|
- | |||||
| 23 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 6.95 | |||||
| 24 | 67002451 | Clip |
|
$ 8.44 | |||||
| 25 | 67002201 | Trim,vertical (rt-stnls)xx |
|
- | |||||
| 26 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.02 | |||||
| 27 | 12655102AP | Hinge, Center (wht) (Replaces: 67002028) |
|
$ 143.69 | |||||
| 28 | W11245710 | Screw, Sm (stnls) (Replaces: M0210417) |
|
Immediately | $ 14.05 | ||||
| 29 | 67003113 | Spacer, Handle |
|
- | |||||
| 30 | 67003111 | Bucket, Lg Ref Dr |
|
- | |||||
| 31 | 67002435 | Trim, Vertical (lt-stnls) |
|
- | |||||
| 32 | 67002194 | Trim, Door Bottom (stnls) |
|
- | |||||
| 33 | 67003044 | Handle, Ref Door |
|
- | |||||
| 34 | 67003114 | Mount, Handle |
|
- | |||||
| 35 | 340184 | Screw (Replaces: 67003115) |
|
$ 13.44 |
