SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts

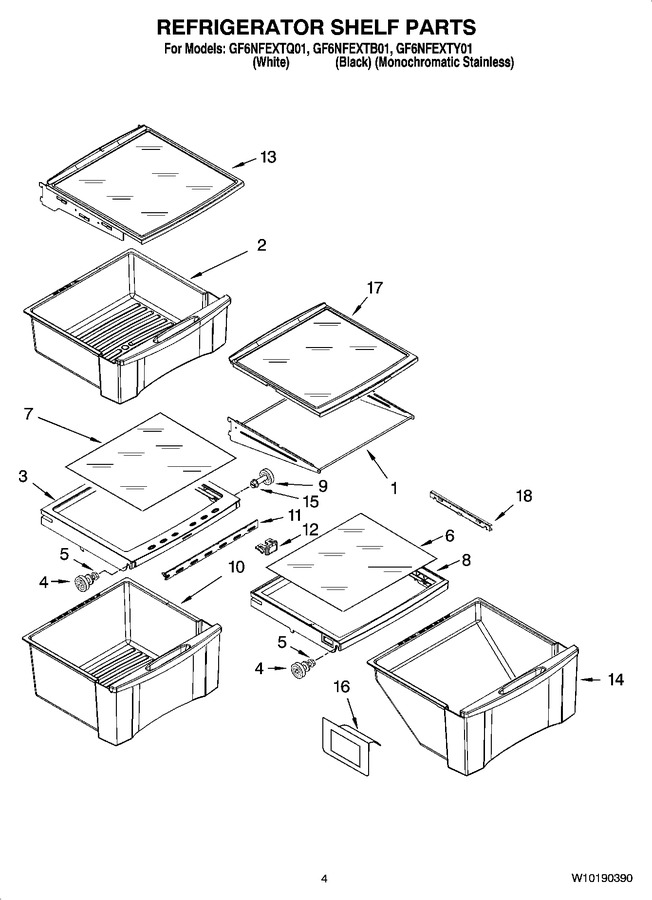

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2223517		Frame Assembly (2)				$ 83.09
2	2223261		Snack Bin Asm		Appelez-nous	-
3	2223307		Cover, Crisper				$ 77.55
4	W11223328		Stud Assembly   (Replaces: 2196208)			Immediately	$ 14.07
5	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
6	2223714		Glass, Meat Cover				$ 85.42
7	2223591		Glass, Cover				$ 88.38
8	WP2223242		Cover, Meat Pan   (Replaces: 2223242)				$ 279.75
9	WP2196483		Stud Assembly   (Replaces: 2196205)				$ 10.35
10	WPW10233488		Crisper Pan Asm   (Replaces: 2223631)				$ 192.04
11	2223308		Slide, Humidity Control				$ 77.01
12	2223309		Knob, Humidity Control				$ 34.60
13	WP2223288		Shelf Pan Assemly   (Replaces: 2223288)				$ 397.99
14	2223639		Meat Pan Asm		Appelez-nous	-
15	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
16	2179350		Deflector				$ 81.80
17	2255160		Shelf, Slide Out (2)		Appelez-nous	-
18	WP2223320		Slide, Pan   (Replaces: 2223320)			Immediately	$ 25.05

    View Diagram in Separate Window       Print Part List
