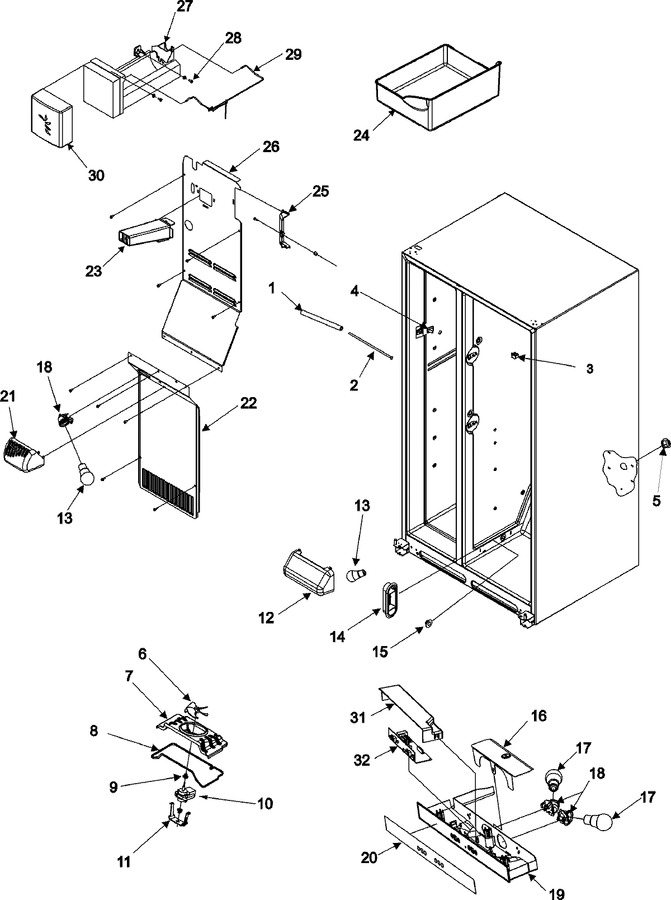

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67002219 | Insulation, Tubing | 10 |
|
- | ||||
| 2 | M0322202 | Tie Wire | 10 |
|
- | ||||
| 3 | W11291138 | Switch, Ref Light (Replaces: 12466104) | 10 |
|
Immediately | $ 36.67 | |||
| 4 | W11396033 | Switch, Light (Replaces: 12466103) | 10 |
|
Immediately | $ 37.30 | |||
| 5 | W11447232 | Socket, Light (Replaces: Y12570701) | 10 |
|
Immediately | $ 13.21 | |||
| 6 | WP2169142 | Fan, Evaporator (Replaces: 12217201) | 10 |
|
Immediately | $ 43.41 | |||
| 7 | 67004491 | Shroud, Evap | 10 |
|
- | ||||
| 8 | 67001508 | Gasket | 10 |
|
- | ||||
| 9 | WP67002780 | Grommet, Fan Motor (Replaces: 67002780) | 10 |
|
$ 7.81 | ||||
| 10 | 12002744 | Motor, Evap Fan (Replaces: 67003917) | 10 |
|
Immediately | $ 126.26 | |||
| 11 | WP67005633 | Clip (Replaces: 67003083) | 10 |
|
$ 7.65 | ||||
| 12 | 67001507 | Shield, Crisper Light | 10 |
|
- | ||||
| 13 | W11679940 | Bulb, Light (Replaces: 67003883) | 10 |
|
Immediately | $ 11.30 | |||
| 14 | 12634801 | Grille, Return Air | 10 |
|
- | ||||
| 15 | 67003018 | Plug, Air Tunnel | 10 |
|
- | ||||
| 16 | 67004157 | Reflector, Light | 10 |
|
- | ||||
| 17 | W11679940 | Bulb, Light (Replaces: 67003883) | 10 |
|
Immediately | $ 11.30 | |||
| 18 | W11447232 | Socket, Light (Replaces: Y12570701) | 10 |
|
Immediately | $ 13.21 | |||
| 19 | 67004479 | Housing, Control | 10 |
|
- | ||||
| 20 | 67004497 | Overlay, Control Ja | 10 |
|
- | ||||
| 21 | 67004135 | Shield, Fz Light | 10 |
|
- | ||||
| 22 | 67006425 | Screw, Sm (Replaces: M0238616) | 10 |
|
Immediately | $ 6.95 | |||
| 22 | 67004192 | Cover, Evap | 10 |
|
- | ||||
| 23 | 67003581 | Duct, Quick Ice | 10 |
|
- | ||||
| 24 | WP67001255 | Pan, Ice (Replaces: 10476207) | 10 |
|
$ 203.08 | ||||
| 25 | 67006425 | Screw, Sm (Replaces: M0238616) | 10 |
|
Immediately | $ 6.95 | |||
| 25 | M0580205 | Grommet, Screw | 10 |
|
- | ||||
| 25 | 12583101 | Cover, Supply Air | 10 |
|
- | ||||
| 26 | 67004382 | Back, Inner Fz | 10 |
|
- | ||||
| 26 | 67006425 | Screw, Sm (Replaces: M0238616) | 10 |
|
Immediately | $ 6.95 | |||
| 27 | D7824706Q | Ice Maker Assy. (Replaces: 61005508) | 10 |
|
Immediately | $ 167.35 | |||
| 27 | 12002355 | Thermistor Kit | 10 |
|
Immediately | $ 47.36 | |||
| 28 | M0238833 | Screw Shoulder | 10 |
|
- | ||||
| 29 | 12671401 | Assy, Im Arm/wire | 10 |
|
- | ||||
| 30 | WPW10289690 | Cover, Ice Maker (Replaces: 12582501) | 10 |
|
Immediately | $ 8.40 | |||
| 31 | 67004027 | Cover, Elec Control | 10 |
|
- | ||||
| 32 | WPW10503278 | Board Kit, Control (jazz) (Replaces: 12002449) | 10 |
|
Immediately | $ 55.44 | |||
| 33 | 67004526 | Harness, Control | 10 |
|
- |
