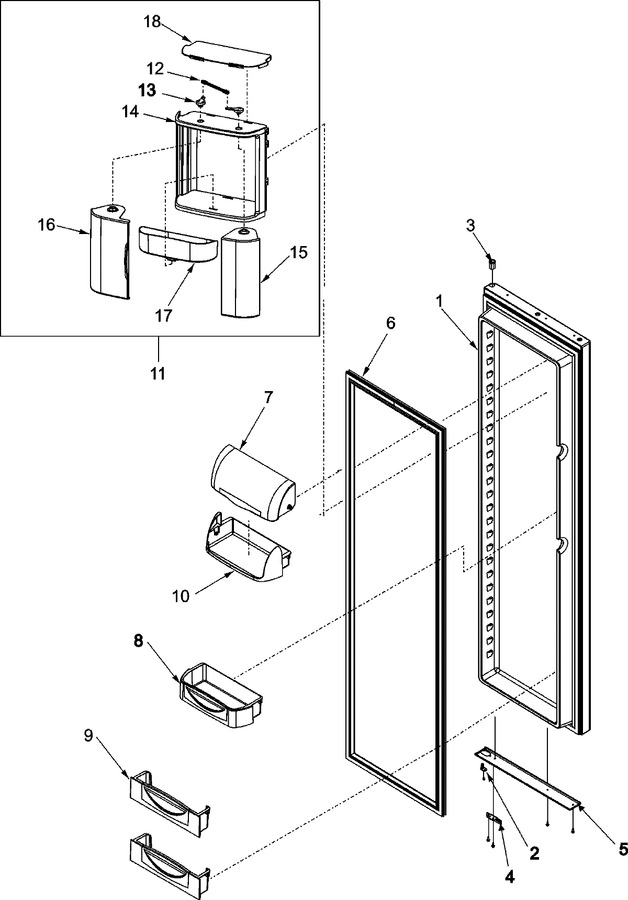

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004622		Door Assy., Ref. Foam (wht)	10	Appelez-nous	-
2	WP8281227		Screw, Tc   (Replaces: M0220432)	10			$ 10.44
2	R0181181		Kit,dr Closure	10		Immediately	$ 7.19
3	10961002		Bushing, Door (blk)	10	Appelez-nous	-
4	12636401W		Stop, Door (wht)	10	Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: M0211018)	10			$ 8.00
5	67004202		Trim, Btm Ref Door (stnls)	10	Appelez-nous	-
6	67003966		Gasket, Ref. Door (wht)	10	Appelez-nous	-
7	67001325		Door, Dairy	10	Appelez-nous	-
8	67004540		Bucket Assy., Ref. Door	10			$ 32.69
9	67004498		Bucket Assy., Ref. Door	10	Appelez-nous	-
10	67002304		Tray, Dairy	10	Appelez-nous	-
11	67004539		Chiller Assy.	10	Appelez-nous	-
12	67002292		Linkage, Ctr Chiller	10	Appelez-nous	-
13	67002293		Linkage, Chiller	10			$ 11.76
14	67002294		Frame, Large Chiller	10	Appelez-nous	-
15	67002297		Door, Large Chiller (rt)	10	Appelez-nous	-
16	67004542		Door, Lg Chiller (lt)	10	Appelez-nous	-
17	67002296		Tray, Chiller	10			$ 26.66
18	67002291		Cover, Chiller	10	Appelez-nous	-
