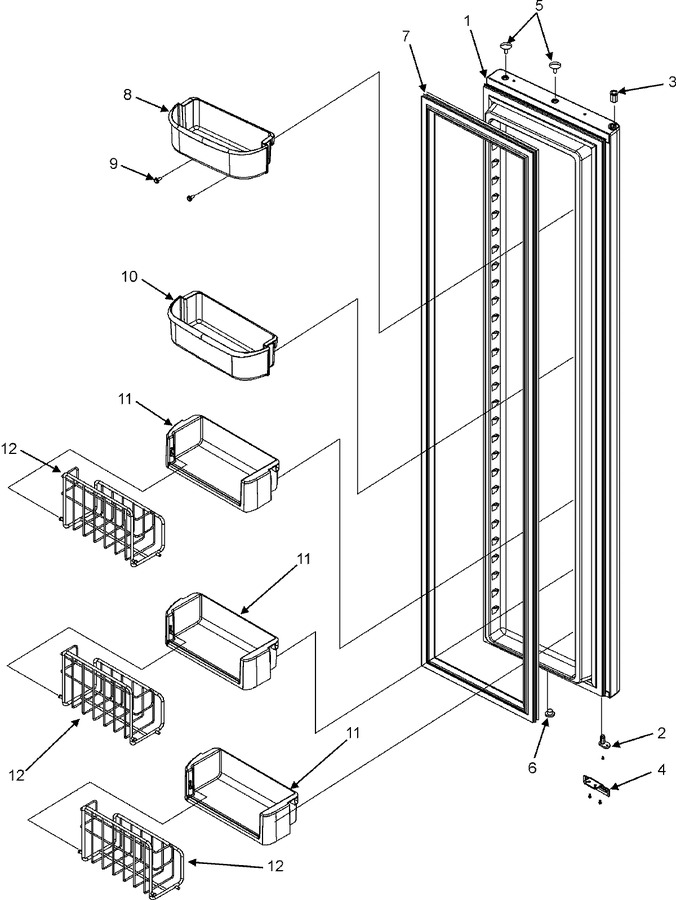

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004593		Door Assy., Frz. Foam (stnls)	10	Appelez-nous	-
2	WP8281227		Screw, Tc   (Replaces: M0220432)	10			$ 10.44
2	R0181181		Kit,dr Closure	10		Immediately	$ 7.19
3	12395501B		Bushing, Door (blk)	10	Appelez-nous	-
4	12636401B		Stop, Door (blk)	10			$ 10.80
4	WP98165		Screw, Sm   (Replaces: M0211018)	10			$ 8.00
5	M0311607		Plug, Button (gry)	10	Appelez-nous	-
6	A3080001		Plug, Button (blk)	10	Appelez-nous	-
7	W10133491		Gasket, Frz. Door (blk)   (Replaces: 67003967)	10			$ 342.75
8	12664901		Bucket-conv Fz Dr	10	Appelez-nous	-
9	67003334		Screw, Tc	10	Appelez-nous	-
10	12557501		Bucket, Lwr Fz Dr	10			$ 17.64
11	67004475		Frame, Tilt Basket	10	Appelez-nous	-
12	67004474		Basket, Tilt	10	Appelez-nous	-
