SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evap Fan/convection Fan/crisp Light


06 - Evaporator Assy. & Rollers


07 - Freezer Compartment


08 - Freezer Door


09 - Freezer Shelves


10 - Handles (jcb2285kep)


11 - Hinges


12 - Ice Maker


13 - Refrigerator Door


14 - Refrigerator Shelves


15 - Supplemental Information


16 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

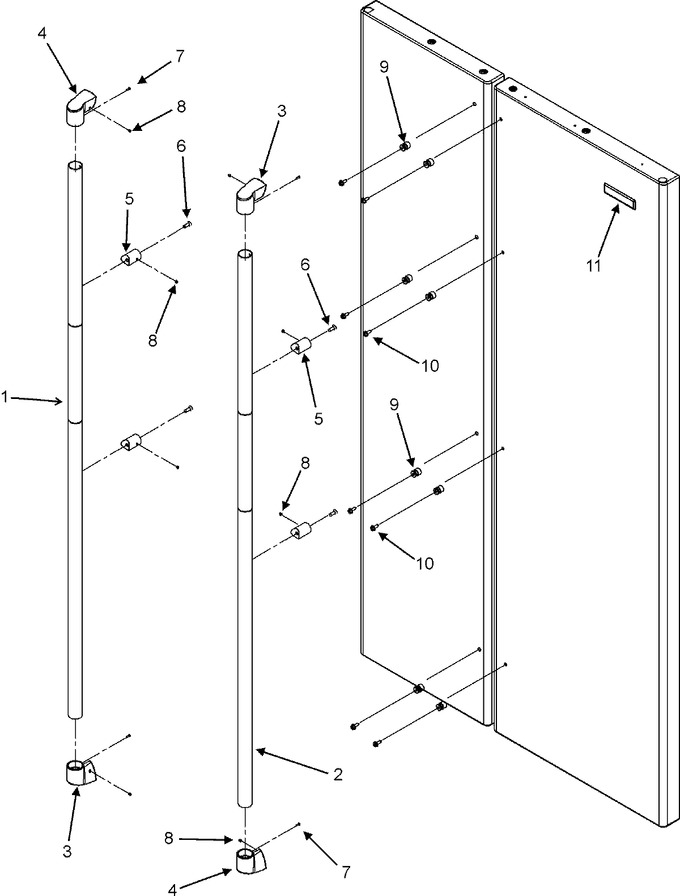

1	WP12859107		Handle Assy., Frz.   (Replaces: 67005509)	10			$ 369.81
2	67005510		Handle Assy., Ref.	10	Appelez-nous	-
3	67005511		End Cap, Handle	10	Appelez-nous	-
4	67005512		End Cap, Handle	10	Appelez-nous	-
5	67005513		Standoff, Handle	10	Appelez-nous	-
6	W11028216		Screw   (Replaces: 67003785)	10			$ 4.87
7	M0207303		Screw   (Replaces: 67004834)	10			$ 6.60
8	W11174552		Screw, Set   (Replaces: 67003786)	10			$ 15.54
9	67005148		Mount, Handle	10	Appelez-nous	-
10	67004545		Screw, Handle	10	Appelez-nous	-
11	W11636815		Nameplate   (Replaces: 67001636)	10			$ 43.19

    View Diagram in Separate Window       Print Part List
