01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts

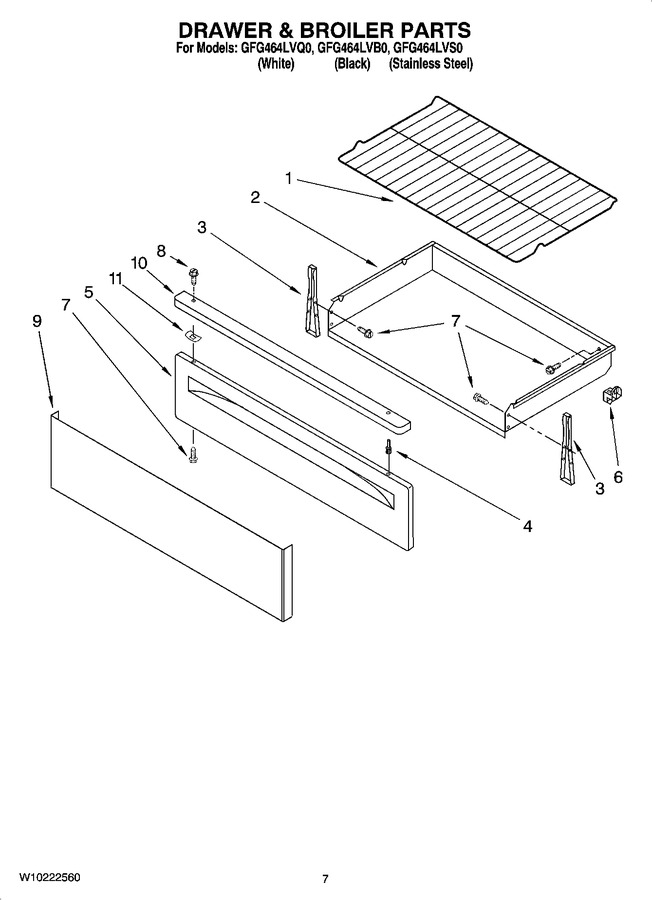

05 - Drawer & Broiler Parts
06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: W10179196) |
|
Immediately | $ 46.84 | ||||
| 2 | 9761031 | Drawer, Storage |
|
- | |||||
| 3 | W10174397 | Bracket, Dwr (2) |
|
$ 38.13 | |||||
| 4 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 4 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 5 | W11230490 | Panel, Drawer Frnt (black) (Replaces: W10022100) |
|
$ 211.59 | |||||
| 5 | W11230486 | Panel, Drawer Frnt (white) (Replaces: W10022090) |
|
$ 211.49 | |||||
| 6 | WP8053334 | Glide, Drawer (2) (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 7 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 8 | WPW10031790 | Screw (stls. Model) (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 9 | W10217861 | Panel(stls. Model) |
|
- | |||||
| 10 | W10197980 | Handle(stls. Mdl) |
|
$ 57.05 | |||||
| 11 | WP9781235 | Clip, Stls Model (Replaces: 9781235) |
|
$ 12.56 |
