01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts

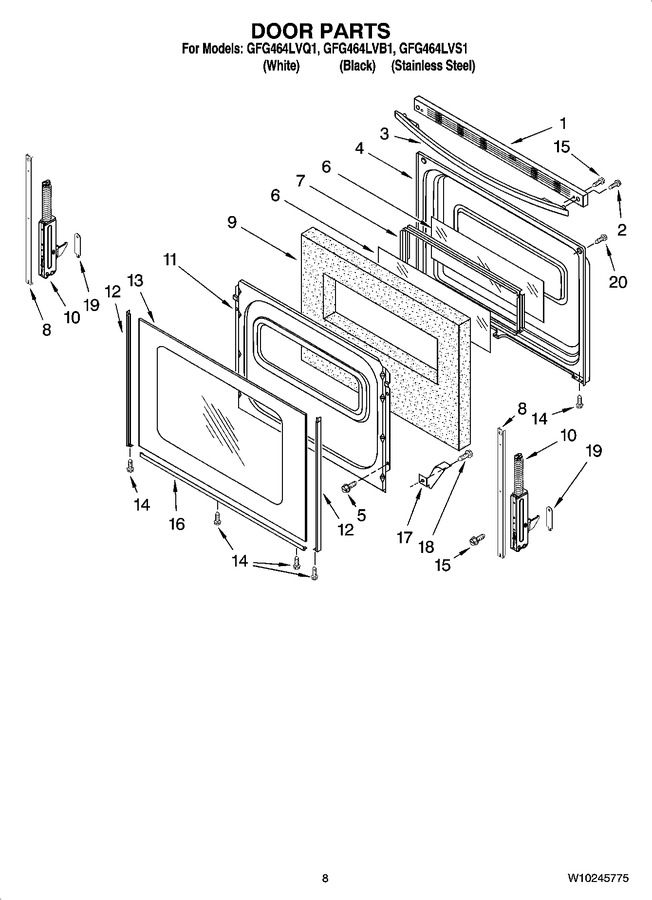

06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10118391) |
|
Immediately | $ 175.37 | ||||
| 1 | W10817433 | Trim, Top (white) (Replaces: W10118390) |
|
Immediately | $ 103.27 | ||||
| 2 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 7.74 | ||||
| 3 | W10817434 | Handle, Door (white) (Replaces: W10118384) |
|
Immediately | $ 223.64 | ||||
| 3 | WPW10144883 | Handle, Door (stainless Steel) (Replaces: W10144883) |
|
$ 240.63 | |||||
| 3 | WPW10323589 | Handle, Door (black) (Replaces: W10118385) |
|
Immediately | $ 238.78 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 355.13 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 84.86 | ||||
| 8 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 26.36 | ||||
| 9 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 96.54 | ||||
| 10 | W10347466 | Hinge, Door (Replaces: 9761493) |
|
Immediately | $ 209.37 | ||||
| 11 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 221.30 | |||||
| 12 | 8184858 | Trim, Door Side (stainless Rh) (Replaces: W10113925) |
|
$ 160.81 | |||||
| 12 | WP8523172 | Trim, Door Side (white Left Hand) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12 | WP8523166 | Trim, Door Side (white Right Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | W10761018 | Trim, Door Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 12 | W10761014 | Trim, Door Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 12 | 8184858 | Trim, Door Side (stainless Lh) (Replaces: W10113926) |
|
$ 160.81 | |||||
| 13 | WPW10118454 | Glass, Outer Door (white) (Replaces: W10118454) |
|
$ 309.44 | |||||
| 13 | WPW10118455 | Glass, Outer Door (black) (Replaces: W10118455) |
|
Immediately | $ 316.86 | ||||
| 14 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.19 | ||||
| 15 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.82 | ||||
| 16 | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 58.45 | ||||
| 16 | WP8523177 | Trim, Bottom (black) (Replaces: 8523177) |
|
Immediately | $ 157.96 | ||||
| 17 | W10137382 | Clip, Pnl Side (2) |
|
Immediately | $ 46.11 | ||||
| 18 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 19 | 9761517 | Clip, Door Mntg (2) |
|
$ 45.82 | |||||
| 20 | WPW10200660 | Screw,10-16 X 3/4 (Replaces: W10200660) |
|
Immediately | $ 7.78 | ||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 511873 | Paint, Touch-up (1/2oz.) (white (porcelain (2 Oz.)) |
|
$ 49.29 | ||||||
| WP3196174 | Screw, Ground (Replaces: 3196174) |
|
Immediately | $ 7.82 | |||||
| W10170251 | Harness, Wire (dsi Ground) |
|
$ 21.71 | ||||||
| W10170249 | Harness, Wire (cooktop Spark) |
|
$ 119.24 | ||||||
| WPW10701462 | Harness, Wire Broil Ignitor (Replaces: W10170250) |
|
$ 95.88 | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 89.66 | ||||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 57.04 | ||||||
| 3196696 | Clip, Harness |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| WPW10182767 | Wire, Tie (Replaces: W10182767) |
|
$ 6.95 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| W10157261 | Harness, Wire (main) |
|
$ 234.14 | ||||||
| W11839019 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 27.18 | |||||
| 4396923 | Pan - Broiler |
|
Immediately | $ 57.82 | |||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 83.07 | |||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| W11244557 | Screw (Replaces: 3196173) |
|
$ 13.61 | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 19.55 | ||||||
| 3196896 | Clip-wire |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 84.76 |
