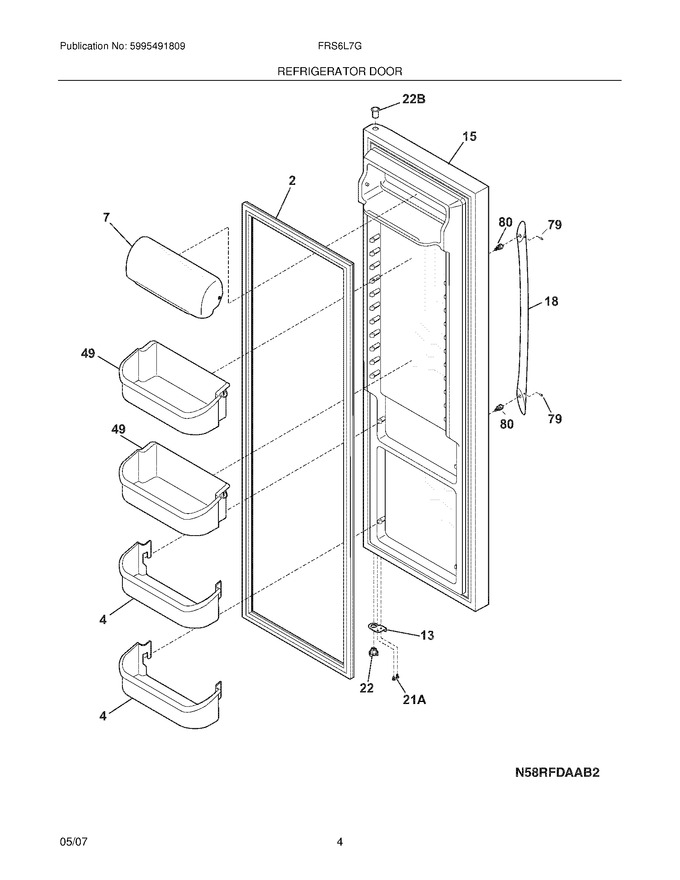

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240323002 | Bin-door,pseudo ,bottom |
|
Immediately | $ 74.68 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 13 | 240581905 | Door Stop,black ,ref |
|
$ 66.94 | |||||
| 15 | 241629333 | Door-refr,stainless ,complete Assy |
|
$ 450.01 | |||||
| 18 | 240536818 | Handle-door,stainless Steel ,with Insert,& Set Screw |
|
$ 202.00 | |||||
| 22 | 240328203 | Bearing-hinge,black ,closer |
|
Immediately | $ 30.26 | ||||
| 49 | 240356402 | Bin-door,gallon |
|
Immediately | $ 118.70 | ||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 36.67 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598402) |
|
$ 13.20 | |||||
| 22B | 240328404 | Bearing-hinge,black ,upper |
|
$ 25.41 | |||||
| F2 | 241786005 | Gasket-refr Door,black ,magnetic (Replaces: 241674805) |
|
Immediately | $ 250.69 | ||||
| NI | 241601001 | Wrench,allen |
|
- |
