SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker

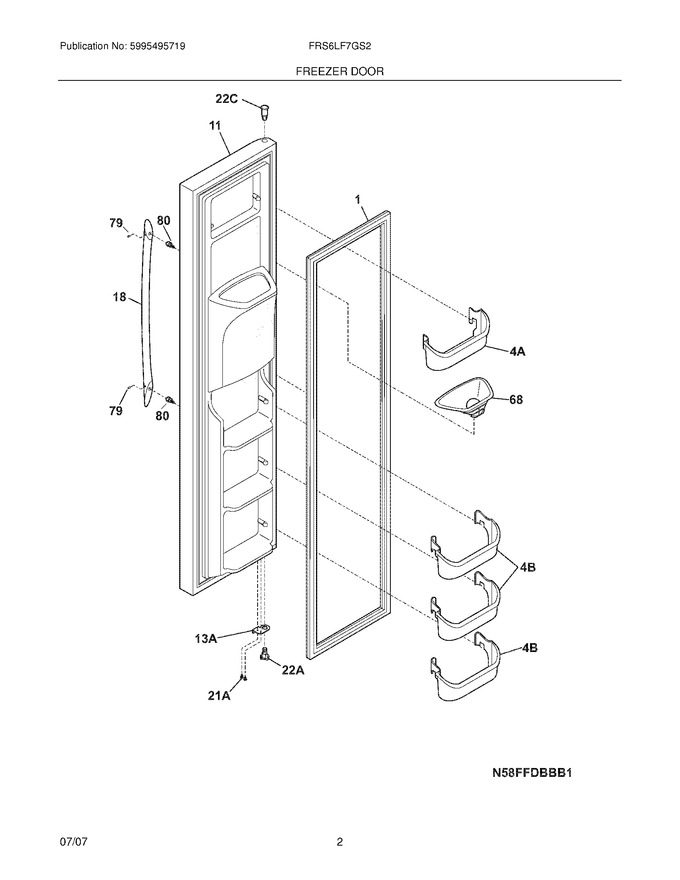

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241786014		Freezer Door Gasket, Grey, Magnetic   (Replaces: 241786006)				$ 105.74
11	241615160		Door,frzr ,stainless Steel ,rh				$ 431.87
18	240536818		Handle-door,stainless Steel ,with Insert,& Set Screw				$ 202.00
68	241525101		Chute-ice				$ 91.39
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 36.67
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
13A	240581906		Door Stop,black ,frzr				$ 81.11
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 13.20
22A	242000502		Bearing-hinge(frz),black ,closer   (Replaces: 240328204)				$ 7.98
22C	240328404		Bearing-hinge,black ,upper				$ 25.41
4A	240334201		Bin-door,frzr-upper				$ 74.68
4B	240351601		Bin-door			Immediately	$ 65.26
NI	5303918256		Dispenser Heater Kit				$ 526.84
NI	240552102		Harness-wiring,door				$ 77.60
NI	241806601		Connector-water,straight			Immediately	$ 78.40
NI	241601001		Wrench,allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
