SELECT A DIAGRAM

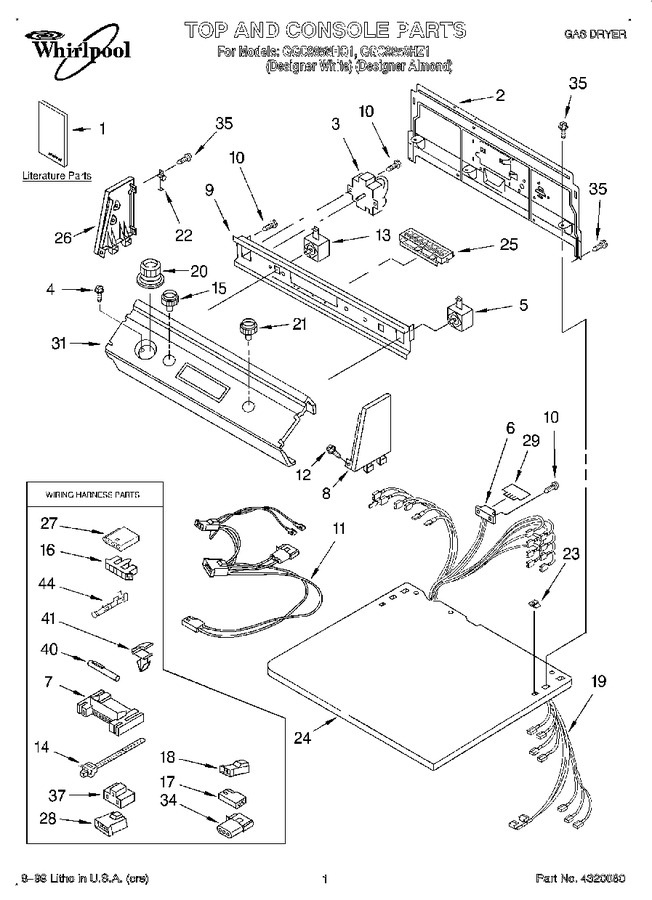

01 - Top And Console, Literature


02 - Cabinet


03 - Bulkhead


04 - 3402851 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8280525		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT3405344		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3977703		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
2	3976705		Panel, Rear Console		Appelez-nous	-
3	WP3406725		Timer   (Replaces: 3406725)				$ 368.58
4	3400859		Screw, Grounding (8-18 X 7/32)				$ 13.22
5	WP3398094		Relay, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
6	3391885		Connector, Edge				$ 86.40
7	3395683		Connector (motor)			Immediately	$ 51.86
8	3358514		Cap, End (r.h.) (almond)		Appelez-nous	-
8	3358513		Cap, End (r.h.) (white)		Appelez-nous	-
9	8271318		Bracket, Control		Appelez-nous	-
10	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
11	WP3401850		Harness, Gas   (Replaces: 3401850)				$ 242.98
12	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
13	WP3398093		Switch, Signal   (Replaces: 3398093)				$ 146.35
14	WP3391018		Tie Cable (push Mount)   (Replaces: 3391018)				$ 31.84
15	3950760		Knob, Control (almond)		Appelez-nous	-
15	WP3957796		Knob, Control (white)   (Replaces: 3950759)			Immediately	$ 54.83
16	3397269		Connector, Timer				$ 25.55
17	717252		Receptacle, 2 Way		Appelez-nous	-
18	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
19	8299837		Harness, Wiring		Appelez-nous	-
20	8283183		Timer Knob Assembly (almond)		Appelez-nous	-
20	WP3957746		Timer Knob Assembly (white)   (Replaces: 8283182)				$ 54.75
21	WP3957800		Knob, Push-to-start (almond)   (Replaces: 3406134)				$ 50.40
21	WP3957800		Knob, Push-to-start (white)   (Replaces: 3406133)				$ 50.40
22	387402		Hinge, Assembly				$ 5.84
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
24	3976483		Top (almond)		Appelez-nous	-
24	3976482		Top (white)		Appelez-nous	-
25	8299990		Switch, Tap Touch (white)		Appelez-nous	-
25	8299991		Switch, Tap Touch (almond)		Appelez-nous	-
26	3358528		Cap, End (l.h.) (white)		Appelez-nous	-
26	3358529		Cap, End (l.h.) (almond)		Appelez-nous	-
27	3936144		Connector				$ 20.21
28	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
29	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
31	8274444		Panel, Control (white)		Appelez-nous	-
31	8274445		Panel, Control (almond)		Appelez-nous	-
34	697779		Plug, 3-way		Appelez-nous	-
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
37	3401144		Connector, (pts Relay)				$ 12.20
40	351296		Receptacle		Appelez-nous	-
41	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
	LIT677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
