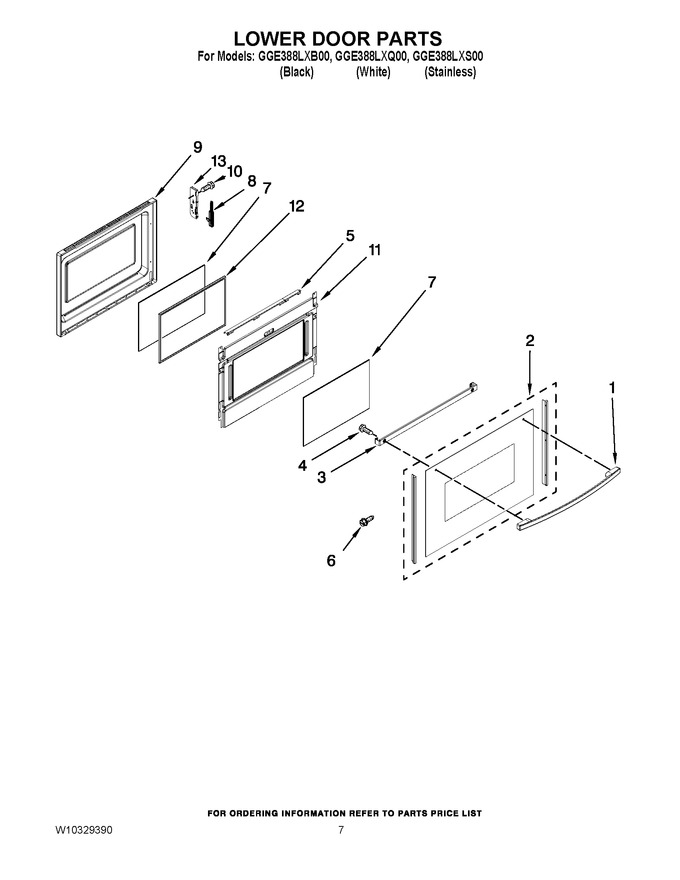

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Upper Door Parts
05 - Lower Door Parts
06 - Rack And Element Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817434 | Handle, Door (white) (Replaces: W10323588) |
|
Immediately | $ 223.64 | ||||
| 1 | WPW10144883 | Handle, Door (stainless) (Replaces: W10144883) |
|
$ 240.63 | |||||
| 1 | WPW10323589 | Handle, Door (black) (Replaces: W10323589) |
|
Immediately | $ 238.78 | ||||
| 2 | W10326569 | Assembly, Glass Door (black) |
|
- | |||||
| 2 | W10326904 | Assembly, Glass Door (stainless (stainless Incl. Trim & Overlay)) |
|
- | |||||
| 2 | W10326566 | Assembly, Glass Door (white) |
|
- | |||||
| 3 | WPW10294695 | Bracket, Handle (Replaces: W10294695) |
|
$ 140.02 | |||||
| 4 | WPW10317886 | Screw, Handle (Replaces: W10317886) |
|
Immediately | $ 7.76 | ||||
| 5 | WPW10272594 | Frame, Glass (2) (Replaces: W10272594) |
|
Immediately | $ 187.99 | ||||
| 6 | WPW10292297 | Screw W/washer (Replaces: W10292297) |
|
Immediately | $ 7.19 | ||||
| 7 | WP9757706 | Glass, Inner (2) (Replaces: 9757706) |
|
Immediately | $ 141.95 | ||||
| 8 | WPW10335434 | Hinge, Door (left) (Replaces: W10274496) |
|
Immediately | $ 98.00 | ||||
| 8 | WPW10335433 | Hinge, Door (right) (Replaces: W10274495) |
|
$ 99.99 | |||||
| 9 | WPW10272698 | Lining, Door (Replaces: W10272698) |
|
$ 329.26 | |||||
| 10 | WP4449743 | Screw (receiver) (Replaces: 4449743) |
|
$ 7.19 | |||||
| 11 | W10340464 | Retainer, Insul. (Replaces: W10287976) |
|
$ 276.00 | |||||
| 12 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 101.36 | |||||
| 13 | WPW10272329 | Receiver (left) (Replaces: W10272329) |
|
$ 77.25 | |||||
| 13 | WPW10272328 | Receiver (right) (Replaces: W10272328) |
|
$ 85.75 |
