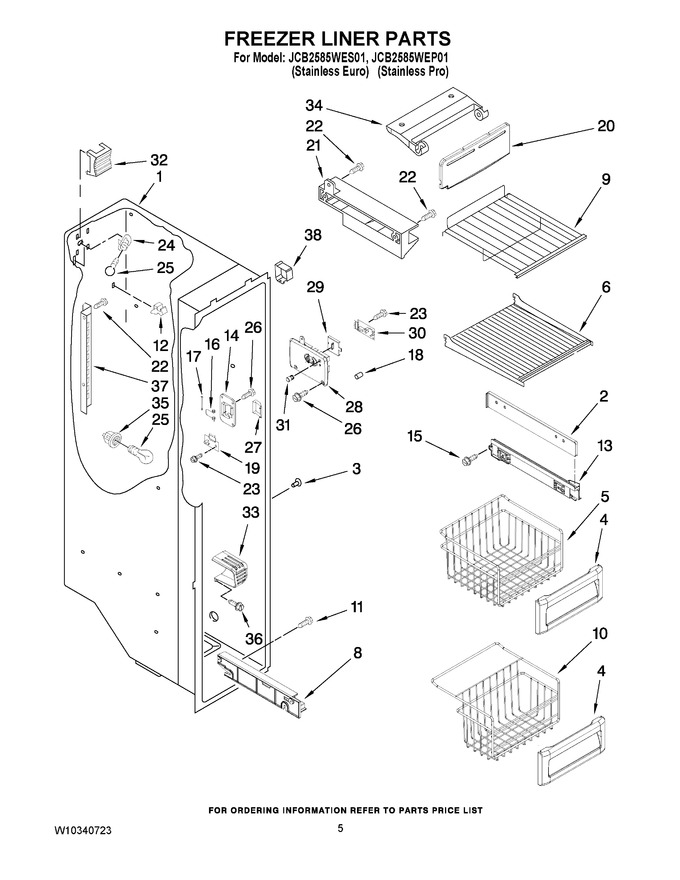

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Asevice Able Part)		Appelez-nous	-
2	2223777		Spacer, Slide (2)		Appelez-nous	-
3	WP941839		Hole Plug   (Replaces: 941839)				$ 7.65
4	2224053		Basket, Front				$ 64.68
5	2223811		Basket, Deep (2)		Appelez-nous	-
6	2223500		Shelf Assembly, Cantilever (2)		Appelez-nous	-
8	2223787		Shelf Track (right Side)				$ 40.35
8	2223788		Shelf Track (left Side)				$ 40.68
9	2223681		Shelf, Fixed				$ 37.08
10	2223694		Basket, Lower				$ 146.94
11	WPW10142283		Screw   (Replaces: W10142283)				$ 9.84
12	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.42
13	2301545		Glide Assembly, Basket (2) (left Side)				$ 145.88
13	2301544		Glide Assembly, Basket (2) (right Side)		Appelez-nous	-
14	2259487		Cover, Emitter				$ 68.37
15	WPW10141645		Screw   (Replaces: W10141645)				$ 7.67
16	WP2198635		Spring   (Replaces: 2198635)				$ 87.08
17	WP2198634		Pin   (Replaces: 2198634)				$ 17.76
18	2198665		Tube, P.c. Board				$ 21.52
19	W11629974		P.c. Boardemitter   (Replaces: W10193840)			Immediately	$ 401.07
20	WPW10185438		Cover, Ice Maker   (Replaces: W10185438)				$ 85.64
21	2212321		Slide, Ice Maker Mounting (right Side)				$ 67.14
21	2306900		Slide, Ice Maker Mounting (left Side)		Appelez-nous	-
22	WP489478		Screw,   (Replaces: W10001260)				$ 7.75
23	2006254		Screw   (Replaces: 489214)				$ 13.13
24	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
25	W11679940		Light Bulb   (Replaces: W10311505)			Immediately	$ 11.30
26	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
27	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 48.27
28	W10173569		Cover, Receiver				$ 66.93
29	2315398		Slide, Ice Maker Shut Off				$ 10.90
30	W11629974		P.c. Board, Receiver   (Replaces: W10290817)			Immediately	$ 401.07
31	WP2198643		Lens   (Replaces: 2198643)				$ 8.18
32	2198589		Light Shield		Appelez-nous	-
33	W11298978		Light Lens   (Replaces: 2212340)				$ 93.88
34	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.19
35	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
36	WP3400012		Screw   (Replaces: W10142285)				$ 7.82
37	2223414		Ladder (left Side)		Appelez-nous	-
37	2223415		Ladder (right Side)		Appelez-nous	-
38	2303378		Shield, Wiring				$ 11.88
