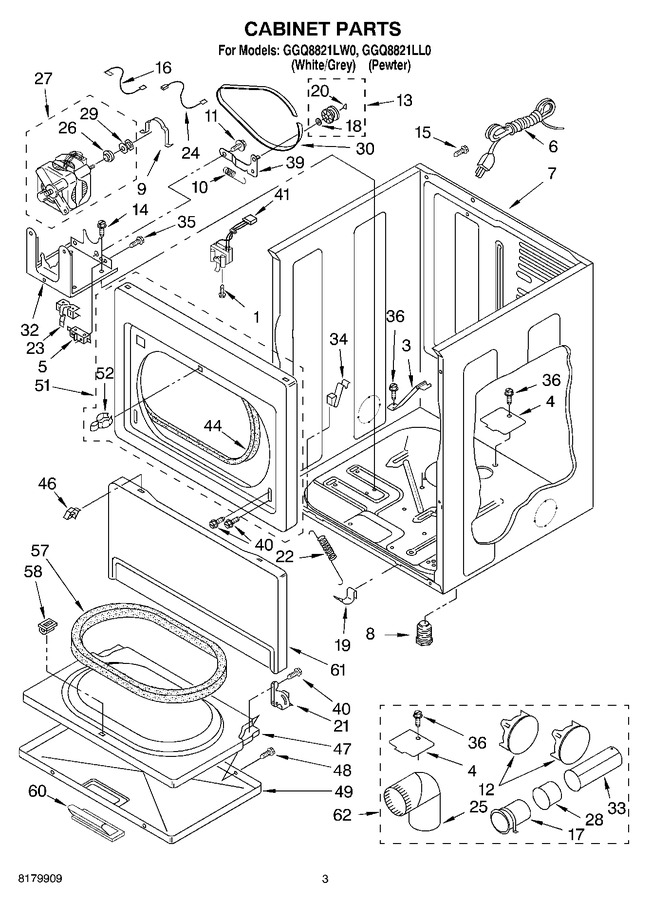

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
3	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
4	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 9.41
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
7	W11417441		Cabinet (white)   (Replaces: 8310656)				$ 440.17
7	8528155		Cabinet (pewter)		Appelez-nous	-
8	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	W10470674		Plug, Multivent (white)   (Replaces: 697750)			Immediately	$ 76.65
12	WPW10404617		Plug, Multivent (pewter)   (Replaces: 3979261)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 8.47
15	W10850756		Screw, Ground   (Replaces: 697776)				$ 8.20
16	3398948		Wire, Jumper (broken Belt Switch)				$ 64.66
17	WP8563747		Exhaust Pipe & Bracket   (Replaces: 3395532)				$ 95.95
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 8.36
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.95
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	WP3387560		Hinge, Door (r.h.)   (Replaces: 3387560)				$ 109.20
21	WP3387559		Hinge, Door (l.h.)   (Replaces: 3387559)				$ 109.20
22	WP3387565		Spring, Door (2)   (Replaces: 3387565)				$ 41.32
23	WP8066120		Lever, Snap Switch   (Replaces: 3391408)			Immediately	$ 34.77
24	3394081		Wire, Belt Switch				$ 37.57
25	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
27	279787		Motor, Assembly 60 Hz.   (Replaces: 661655)			Immediately	$ 235.65
28	WPW10331278		Exhaust Pipe (short)   (Replaces: 3395534)				$ 82.90
29	W10837625		Pulley 60 Hz   (Replaces: 3389729)			Immediately	$ 12.77
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	WP8563749		Exhaust Pipe (long)   (Replaces: 3395535)				$ 93.24
34	3388600		Clip, Lint Duct		Appelez-nous	-
35	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 8.18
36	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
41	WP3406107		Door, Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	697655		Door, Rear		Appelez-nous	-
48	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.55
49	8521936		Door, Front (pewter)		Appelez-nous	-
49	8521938		Door, Front (white)				$ 105.08
51	697227		Upper Front Panel (white)		Appelez-nous	-
51	3979198		Upper Front Panel (pewter)		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
57	W10823582		Seal, Door   (Replaces: 3390736)				$ 117.52
58	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
60	3979727		Handle, Door				$ 63.75
61	WP3406797		Toe, Panel (white)   (Replaces: 697215)				$ 250.25
61	3979197		Toe, Panel (pewter)		Appelez-nous	-
62	W10470674		Pewter   (Replaces: 279969)			Immediately	$ 76.65
62	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) White   (Replaces: 279818)			Immediately	$ 76.65
