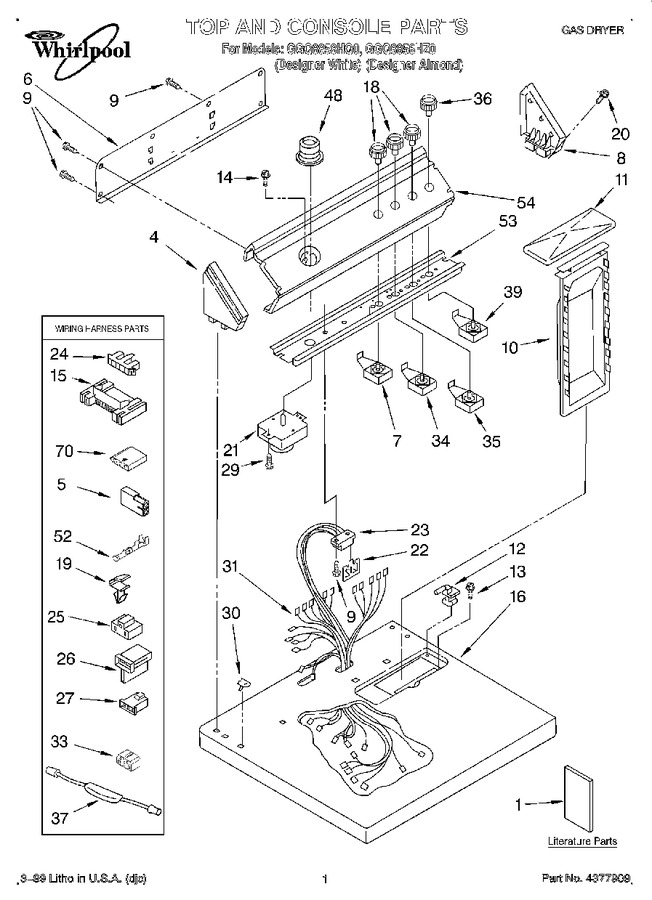

SELECT A DIAGRAM

01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 3402844 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3977702		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	LIT3405340		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8280527		Literature Parts (use & Care Guide)		Appelez-nous	-
4	3358529		Cap, End (l.h.) (almond)		Appelez-nous	-
4	3358528		Cap, End (l.h.) (white)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	3397545		Panel, Rear Console		Appelez-nous	-
7	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 223.93
8	3358514		Cap, End (r.h.) (almond)		Appelez-nous	-
8	3358513		Cap, End (r.h.) (white)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Ground				$ 13.22
15	3395683		Connector (motor)			Immediately	$ 51.86
16	3396023		Top (almond)		Appelez-nous	-
16	3396022		Top (white)		Appelez-nous	-
18	3950760		Knob, Control (almond)		Appelez-nous	-
18	WP3957796		Knob, Control (white)   (Replaces: 3950759)			Immediately	$ 54.83
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
20	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
21	WP3406725		Timer Assembly 60 Hz.   (Replaces: 3406725)				$ 368.58
22	3977407		Control, Electronic		Appelez-nous	-
23	3391885		Connector, Edge				$ 86.40
24	3397269		Connector, Timer				$ 25.55
25	3401144		Connector, (pts Relay)				$ 12.20
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	3406727		Harness, Wiring		Appelez-nous	-
33	3347243		Connector 6-circuit		Appelez-nous	-
34	WP3398093		Switch, Signal   (Replaces: 3398093)				$ 146.35
35	3405154		Switch, Finish Guard				$ 152.88
36	WP3957800		Knob, Push-to-start (white)   (Replaces: 3406133)				$ 50.40
36	WP3957800		Knob, Push-to-start (almond)   (Replaces: 3406134)				$ 50.40
37	8283131		Resistor Assembly		Appelez-nous	-
39	WP3398094		Relay, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
48	WP3957746		Timer Knob Assembly (white)   (Replaces: 8283182)				$ 54.75
48	8283183		Timer Knob Assembly (almond)		Appelez-nous	-
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
53	8054298		Bracket, Control		Appelez-nous	-
54	3976776		Panel, Control (almond)		Appelez-nous	-
54	3976775		Panel, Control (white)		Appelez-nous	-
70	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
70	978883		Almond (uncut)		Appelez-nous	-
70	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
70	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
70	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
70	3936144		Connector				$ 20.21
70	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
70	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT677818		Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
