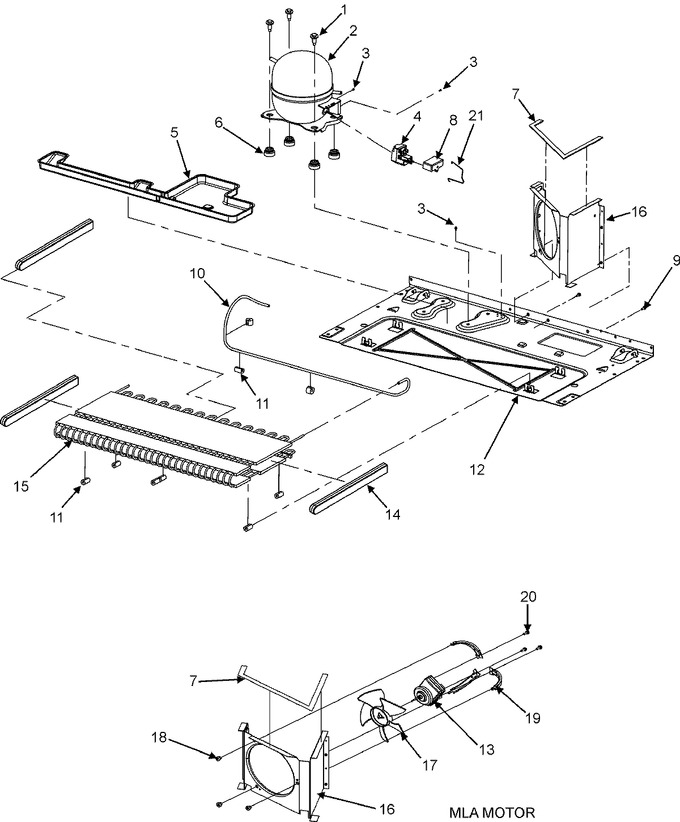

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
M0221523 |
|
Screw, Shldr |
11 |
Appelez-nous
|
- |
|
|
|
| 2 |
W10309990 |
 |
Compressor (Replaces: 67003084) |
11 |
|
Immediately |
$ 632.81 |
|
|
| 3 |
12992301 |
|
Screw, Tf (Replaces: M0231604) |
11 |
|
|
$ 7.32 |
|
|
| 4 |
W10613606 |
 |
Overload/relay W/capacitor (Replaces: 67003764) |
11 |
|
Immediately |
$ 86.59 |
|
|
| 5 |
WP12579803 |
 |
Pan, Drain (Replaces: 12579801) |
11 |
|
|
$ 245.45 |
|
|
| 6 |
WPW10169124 |
|
Grommet, Compressor (Replaces: 67003493) |
11 |
|
Immediately |
$ 7.19 |
|
|
| 7 |
WP854334 |
 |
Seal (Replaces: 61003210) |
11 |
|
|
$ 13.28 |
|
|
| 8 |
WP65889-4 |
 |
Capacitor (Replaces: C8931612) |
11 |
|
Immediately |
$ 61.14 |
|
|
| 9 |
67006425 |
 |
Screw, Sm (Replaces: M0238616) |
11 |
|
Immediately |
$ 6.95 |
|
|
| 10 |
67002236 |
|
Tube, Discharge |
11 |
Appelez-nous
|
- |
|
|
|
| 11 |
67005680 |
 |
Grommet, Condenser (Replaces: 12578601) |
11 |
|
|
$ 21.05 |
|
|
| 12 |
67001512 |
|
Pan, Base |
11 |
Appelez-nous
|
- |
|
|
|
| 13 |
W11613295 |
 |
Motor, Condenser Fan (Replaces: 67004432) |
11 |
|
Immediately |
$ 136.84 |
|
|
| 14 |
67002235 |
|
Block-eps Cond |
11 |
Appelez-nous
|
- |
|
|
|
| 15 |
WP67006131 |
 |
Condenser (Replaces: 67003195) |
11 |
|
|
$ 366.74 |
|
|
| 16 |
67001090 |
|
Shroud, Condenser Fan |
11 |
Appelez-nous
|
- |
|
|
|
| 17 |
W10156818 |
 |
Blade, Cond Fan (Replaces: 67004952) |
11 |
|
Immediately |
$ 62.11 |
|
|
| 18 |
61004743 |
|
Grommet, Bracket |
11 |
|
|
$ 5.51 |
|
|
| 19 |
WP67004953 |
|
Bracket, Cond Motor (Replaces: 67004953) |
11 |
|
|
$ 68.83 |
|
|
| 20 |
WP67004954 |
|
Screw (Replaces: 67004954) |
11 |
|
|
$ 7.79 |
|
|
| 21 |
12576801 |
|
Strap, Bale |
11 |
Appelez-nous
|
- |
|
|
|
| 22 |
67004955 |
|
Harness, Mc |
11 |
Appelez-nous
|
- |
|
|
|
