SELECT A DIAGRAM

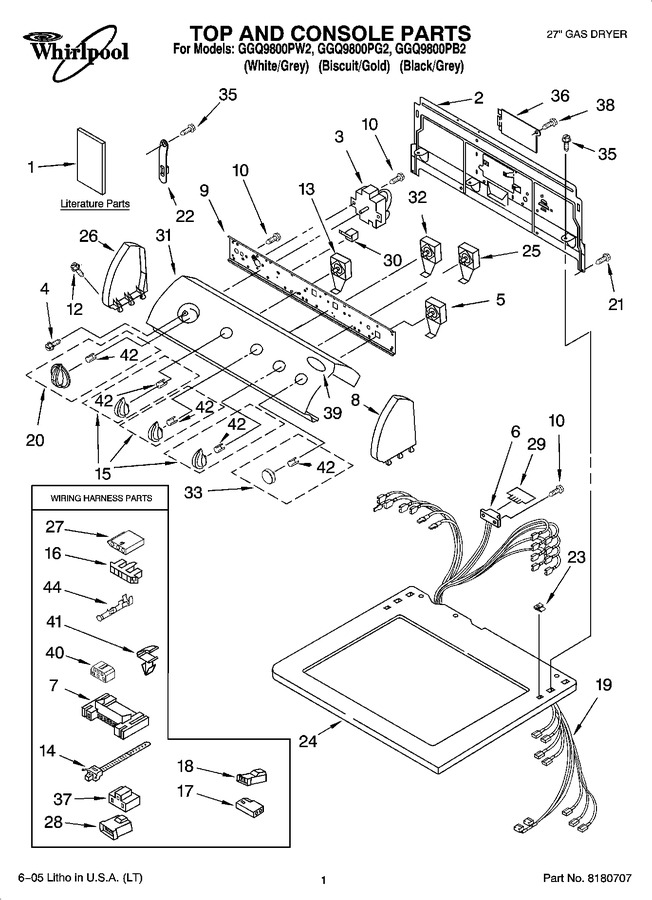

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	8533773		Guide, Use & Care		Appelez-nous	-
1	8533770		Sheet, Cycle Feature		Appelez-nous	-
1	8557498		Instructions, Installation		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8535865		Wiring Diagram		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 248.97
3	WP3406725		Timer   (Replaces: 3406725)				$ 368.58
4	3400859		Screw, Grounding (8-18 X 7/32)   (Replaces: 8533951)				$ 13.22
5	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
6	3391885		Connector, Edge				$ 86.40
7	3395683		Connector (motor)			Immediately	$ 51.86
8	8271361		Cap, End (r.h.) (black)		Appelez-nous	-
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
9	8544897		Bracket, Control		Appelez-nous	-
10	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
12	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
13	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 223.93
14	WP3391018		Tie Cable (push Mount)   (Replaces: 3391018)				$ 31.84
15	8544938		Knob, Control (3) (biscuit)				$ 22.73
15	8544937		Knob, Control (3) (silver)				$ 24.98
16	3397269		Connector, Timer				$ 25.55
17	717252		Receptacle, 2 Way		Appelez-nous	-
18	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
19	8299951		Harness, Wiring		Appelez-nous	-
20	8544957		Timer Knob Assembly (silver)				$ 41.86
20	8544958		Timer Knob Assembly (biscuit)		Appelez-nous	-
21	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
22	WP8568314		Strap, Console   (Replaces: 8568314)				$ 7.78
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
24	8535849		Top (biscuit)		Appelez-nous	-
24	8546091		Top (black)		Appelez-nous	-
24	8535848		Top (white)		Appelez-nous	-
25	3405152		Switch, End Of Cycle				$ 131.07
26	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
26	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
26	8271367		Cap, End (l.h.) (black)		Appelez-nous	-
27	3936144		Connector				$ 20.21
28	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
29	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 314.22
30	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
31	8546000		Panel, Control (includes Illus. 39) (gold)		Appelez-nous	-
31	8545999		Panel, Control (includes Illus. 39) (silver)		Appelez-nous	-
32	3405154		Switch, Wrinkle Shield				$ 152.88
33	WP8544941		Knob, Push-to-start (biscuit)   (Replaces: 8544942)				$ 96.78
33	WP8544941		Knob, Push-to-start (silver)   (Replaces: 8544941)				$ 96.78
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
36	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
37	3401144		Connector, (pts Relay)				$ 12.20
38	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.82
39	8533990		Medallion		Appelez-nous	-
40	3347243		Connector 6-circuit		Appelez-nous	-
41	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
42	WP8536939		Spring Clip   (Replaces: 8536939)			Immediately	$ 7.81
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67

    View Diagram in Separate Window       Print Part List
