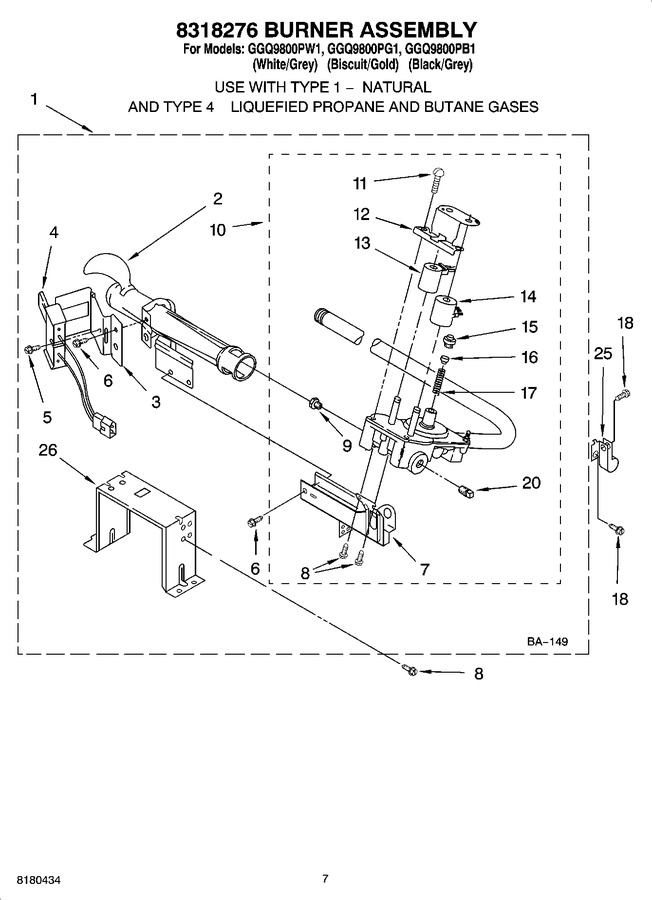

04 - 8318276 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	280119		Burner Assembly 60 Hz. (type 1) (white Rodgers)   (Replaces: 8318276)				$ 416.13
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 179.88
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 25.92
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw & Washer (8-32 X 7/8)   (Replaces: 3393909)				$ 7.50
6	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
7	3389871		Base, Burner				$ 79.29
8	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 7.19
9	WP229742		Orifice, Burner (type 4 (butane))   (Replaces: 229742)				$ 34.85
9	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 34.85
9	WP234826		Orifice, Burner (type 1)   (Replaces: 234826)				$ 37.40
10	WP8318281		Valve, Gas 60 Hz. (complete) (includes Pipe & Illus. 7).   (Replaces: 8318281)				$ 414.10
11	694421		Screw, Bracket Mounting (8-32 X 1/2) (2)		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
14	279834		Coil, 60 Hz. (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
15	WP694424		Leak Limiter   (Replaces: 694424)				$ 34.57
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.95
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 24.27
18	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
20	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
25	3387561		Clamp, Pipe		Appelez-nous	-
26	49572A		Conversion Kit (type (1) To Type (4) Lpg).   (Replaces: 694572)			Immediately	$ 36.19
26	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
26	N/A		Following Parts Not Illustrated		Appelez-nous	-
