Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP12859107 Handle Assy., Frz.   (Replaces: 67005509) 10 Special Order $ 388.30

2 67005510 Handle Assy., Ref. 10 Appelez-nous -
3 67005511 End Cap, Handle 10 Appelez-nous -
4 67005512 End Cap, Handle 10 Appelez-nous -
5 67005513 Standoff, Handle 10 Appelez-nous -
6 W11028216 Screw   (Replaces: 67003785) 10 Special Order $ 5.22

7 M0207303 Screw   (Replaces: 67004834) 10 Special Order $ 6.94

8 W11174552 Screw, Set   (Replaces: 67003786) 10 Special Order $ 16.31

9 67005148 Mount, Handle 10 Appelez-nous -
10 67004545 Screw, Handle 10 Appelez-nous -
11 W11636815 Nameplate   (Replaces: 67001636) 10 Special Order $ 45.35


    View Diagram in Separate Window     Print Icon   Print Part List

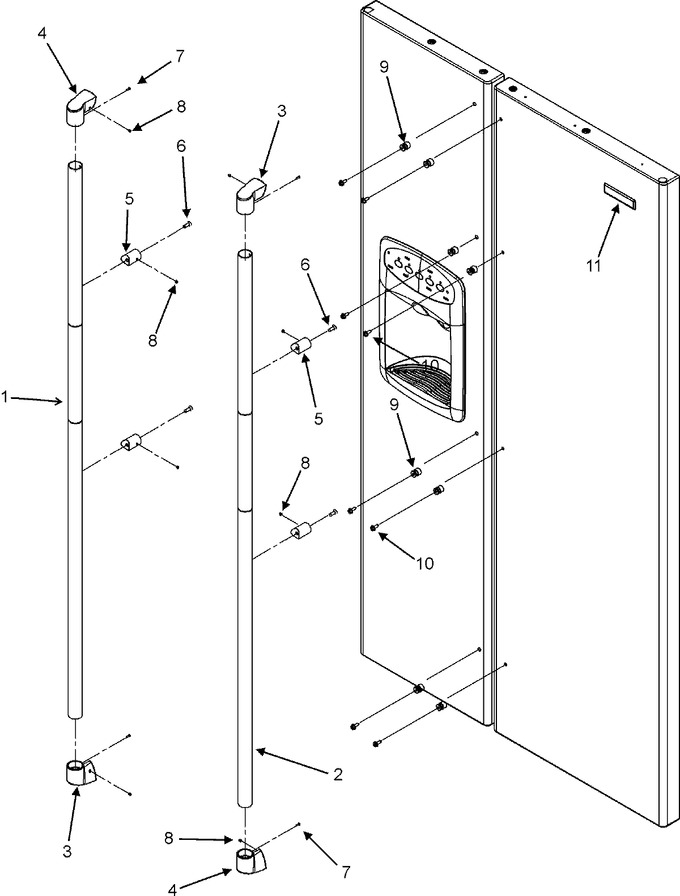

Diagram for JCD2295KEP
