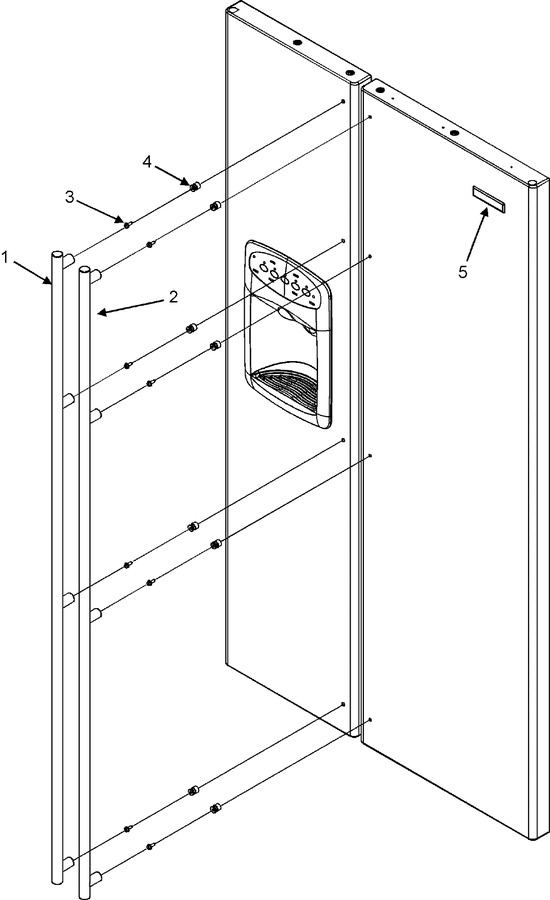

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004543		Handle, Frz. Door (stnls)	10	Appelez-nous	-
2	WP12850908		Handle, Ref. Door (stnls)   (Replaces: 67004544)	10			$ 286.31
3	67004545		Screw, Handle	10	Appelez-nous	-
4	67005148		Mount, Handle	10	Appelez-nous	-
5	67004548		Nameplate	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
