SELECT A DIAGRAM

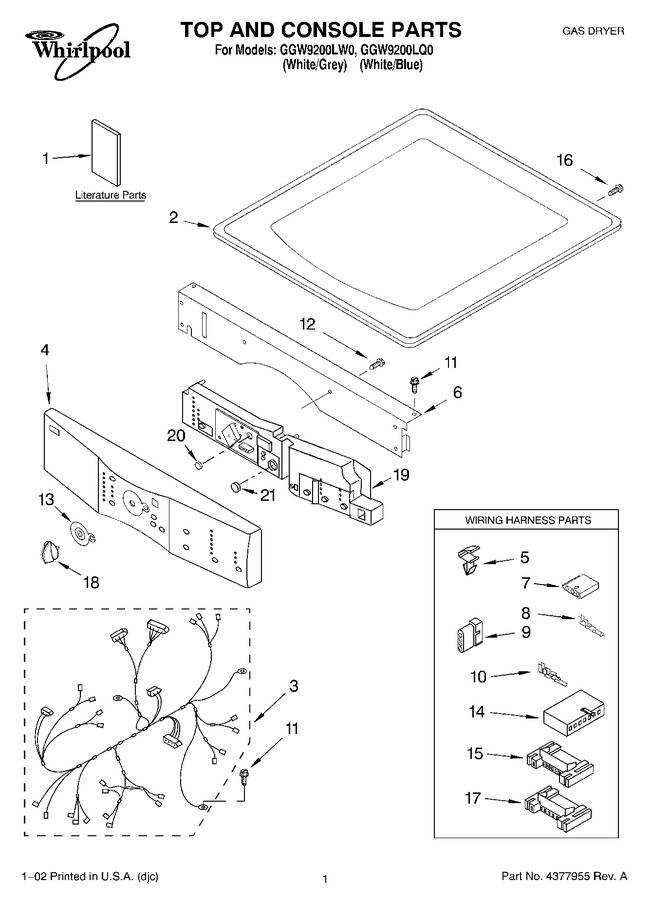

01 - Top And Console, Literature


02 - Cabinet


03 - Bulkhead


04 - 8318276 Burner Assembly


05 - Door


06 - Pedestal


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3979301		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3976605		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3979276		Literature Parts (use & Care Guide)		Appelez-nous	-
2	8519251		Top		Appelez-nous	-
3	8299927		Harness, Main		Appelez-nous	-
4	8530588		Panel, Console (blue)		Appelez-nous	-
4	8530587		Panel, Console (grey)		Appelez-nous	-
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
6	8519271		Bracket, Console		Appelez-nous	-
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
9	3936144		Plug, Terminal				$ 20.21
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
12	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.58
13	8519406		Bezel, Cycle		Appelez-nous	-
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8281225		Screw, 8-18 X 1/2		Appelez-nous	-
17	2203186		Connector, 5-circuit				$ 12.55
18	WP8181881		Knob, Assembly (blue)   (Replaces: 8519397)				$ 24.00
18	WP8181859		Knob, Assembly (grey)   (Replaces: 8519396)			Immediately	$ 41.63
19	8530590		User Interface (blue)		Appelez-nous	-
19	8530589		User Interface (grey)				$ 260.12
20	8530591		Button, Start		Appelez-nous	-
21	8530592		Button, Pause/cancel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
