SELECT A DIAGRAM

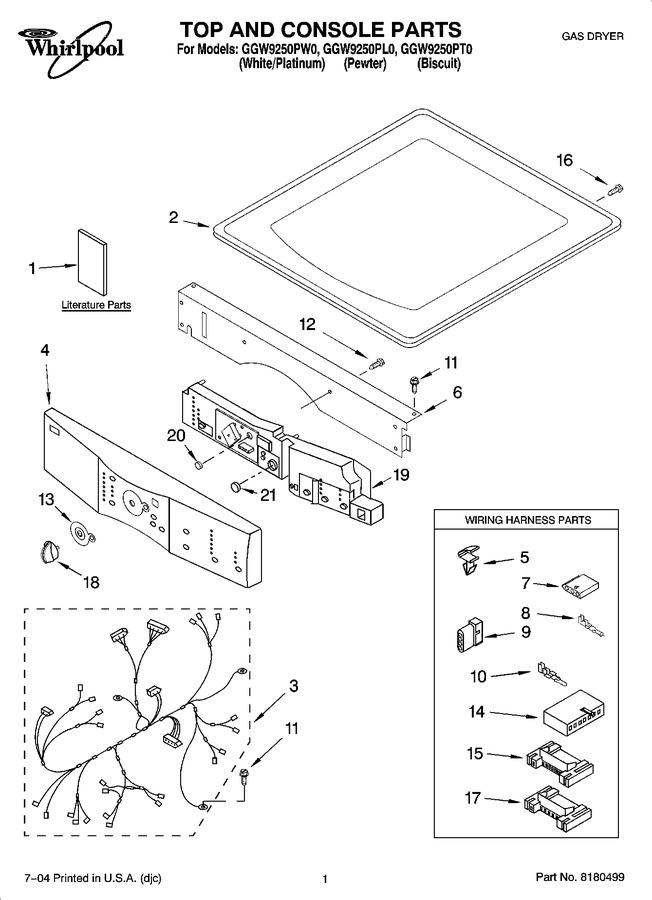

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318276 Burner Assembly


05 - Door Parts


06 - Pedestal Parts (not Included), Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8558723		Tech Sheet		Appelez-nous	-
1	8530052		Use & Care Guide		Appelez-nous	-
2	8519251		Top (white)		Appelez-nous	-
2	3980096		Top (pewter)		Appelez-nous	-
2	8519252		Top (biscuit)		Appelez-nous	-
3	8299950		Harness, Main		Appelez-nous	-
4	8558750		Panel, Console (biscuit)		Appelez-nous	-
4	8558751		Panel, Console (pewter)		Appelez-nous	-
4	8558748		Panel, Console (platinum)		Appelez-nous	-
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
6	8519271		Bracket, Console		Appelez-nous	-
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
9	3936144		Plug, Terminal				$ 20.21
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
12	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.58
13	8519406		Bezel, Cycle		Appelez-nous	-
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8281225		Screw, 8-18 X 1/2		Appelez-nous	-
17	2203186		Connector, 5-circuit				$ 12.55
18	46197020741		Knob, Assembly (biscuit)		Appelez-nous	-
18	WP8182050		Knob, Assembly (pewter)   (Replaces: 46197020742)			Immediately	$ 55.35
18	WP8181859		Knob, Assembly (platinum)   (Replaces: 46197020472)			Immediately	$ 41.63
19	8558755		User Interface (biscuit)				$ 239.75
19	8558753		User Interface (platinum)				$ 248.96
19	8558756		User Interface (pewter)				$ 314.54
20	8561811		Button, Start		Appelez-nous	-
21	8561812		Button, Pause/cancel		Appelez-nous	-
