SELECT A DIAGRAM
New Model Search:

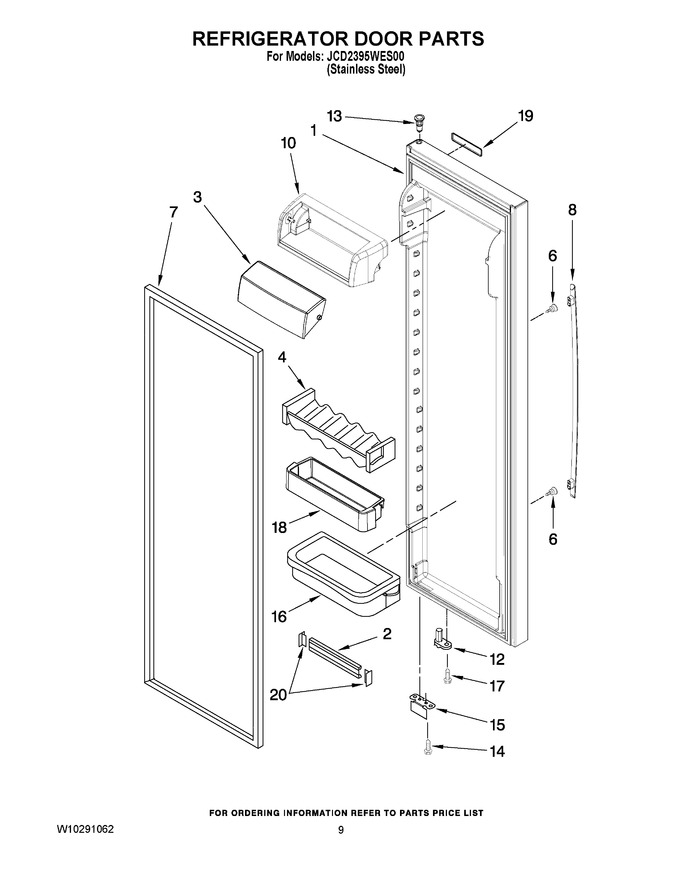

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10214138 | Refrigerator Door (includes No.7) (stainless Steel) |
|
- | |||||
| 2 | 2203087 | Trim, Shelf |
|
$ 42.91 | |||||
| 3 | 2255421 | Dairy Door |
|
$ 34.76 | |||||
| 4 | 2223883 | Caddy, Can |
|
$ 34.98 | |||||
| 6 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 7 | 2326342 | Door Gasket, Magnetic (apollo Grey) |
|
- | |||||
| 8 | WPW10183428 | Handle (stainless Steel) (Replaces: W10183428) |
|
Immediately | $ 321.06 | ||||
| 10 | 2223879 | Dairy Compartment |
|
$ 40.49 | |||||
| 12 | 2307048 | Door Closer, Upper Cam |
|
- | |||||
| 13 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.76 | |||||
| 14 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 15 | 2306940 | Bracket, Door Stop (chrome) |
|
$ 97.08 | |||||
| 16 | WP2223860 | Door Bin (3) (Replaces: 2223860) |
|
Immediately | $ 84.05 | ||||
| 17 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 18 | WP2224173 | Door Bin, Shallow (Replaces: 2224173) |
|
$ 87.32 | |||||
| 19 | WPW10214168 | Nameplate (stainless) (Replaces: W10214168) |
|
$ 81.86 | |||||
| 20 | WP2156006 | Plug, Trim (Replaces: 2156006) |
|
Immediately | $ 12.18 |
