SELECT A DIAGRAM

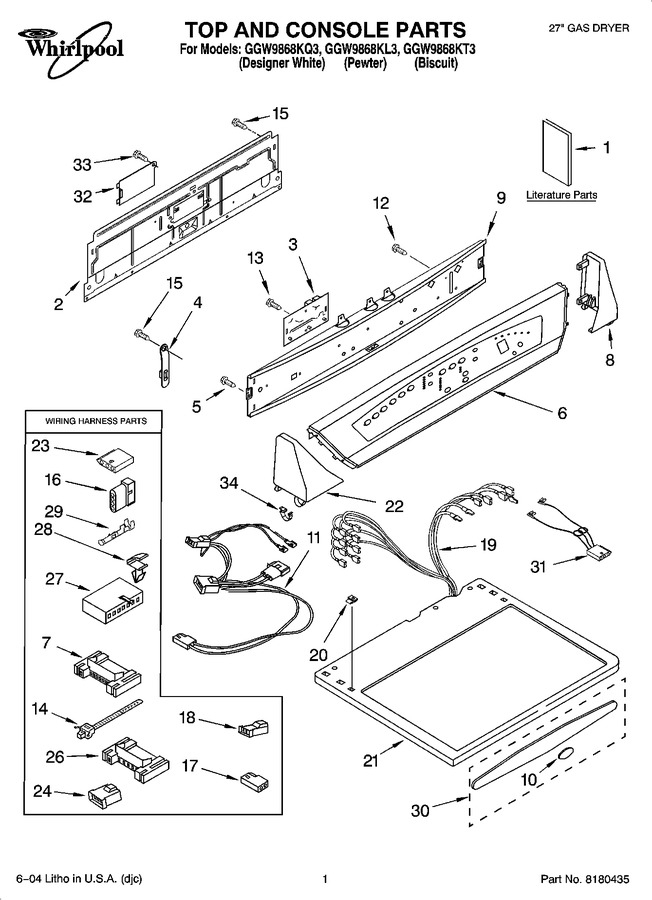

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318276 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8541837		Tech Sheet		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	8528148		Guide, Use & Care		Appelez-nous	-
1	3979174		Instructions, Installation		Appelez-nous	-
2	8274338		Panel, Rear Console		Appelez-nous	-
3	3980061		Control Board		Appelez-nous	-
4	WP8568314		Console Strap   (Replaces: 8318255)				$ 7.78
5	WP304231		Screw, 8-16 X 1/2   (Replaces: 304231)			Immediately	$ 7.75
6	3978825		Panel, Console (includes Keyswitch) (pearl)				$ 325.25
6	3978826		Panel, Console (includes Keyswitch) (pewter)				$ 318.60
7	3395683		Connector (motor)			Immediately	$ 54.45
8	8299686		Cap, End (r.h.) (white)		Appelez-nous	-
8	8299688		Cap, End (r.h.) (pewter)		Appelez-nous	-
8	8299687		Cap, End (r.h.) (biscuit)		Appelez-nous	-
9	8299690		Bracket, Control		Appelez-nous	-
10	8316751		Medallion		Appelez-nous	-
11	WP3401850		Harness, Gas   (Replaces: 3401850)				$ 242.98
12	3400073		Screw, 10-24 X 5/16		Appelez-nous	-
13	3400826		Screw, 8-18 X 3/4		Appelez-nous	-
14	WP3391018		Tie Cable (push Mount)   (Replaces: 3391018)				$ 31.84
15	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
16	353424		Connector				$ 18.95
17	717252		Receptacle, 2 Way		Appelez-nous	-
18	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
19	8299949		Harness, Wiring		Appelez-nous	-
20	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
21	3978832		Top (white)		Appelez-nous	-
21	3978833		Top (biscuit)		Appelez-nous	-
21	3978837		Top (pewter)		Appelez-nous	-
22	8299683		Cap, End (l.h.) (white)		Appelez-nous	-
22	8299685		Cap, End (l.h.) (pewter)		Appelez-nous	-
22	8299684		Cap, End (l.h.) (biscuit)		Appelez-nous	-
23	3936144		Connector				$ 21.22
24	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
26	2203186		Connector				$ 13.18
27	3936150		Connector, 7-circuit				$ 77.60
28	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
29	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
30	8521944		Medallion Assembly (pewter)		Appelez-nous	-
30	8521943		Medallion Assembly (sage)		Appelez-nous	-
31	WP3406653		Harness, Sensor   (Replaces: 3406653)			Immediately	$ 151.96
32	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
33	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.82
34	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
