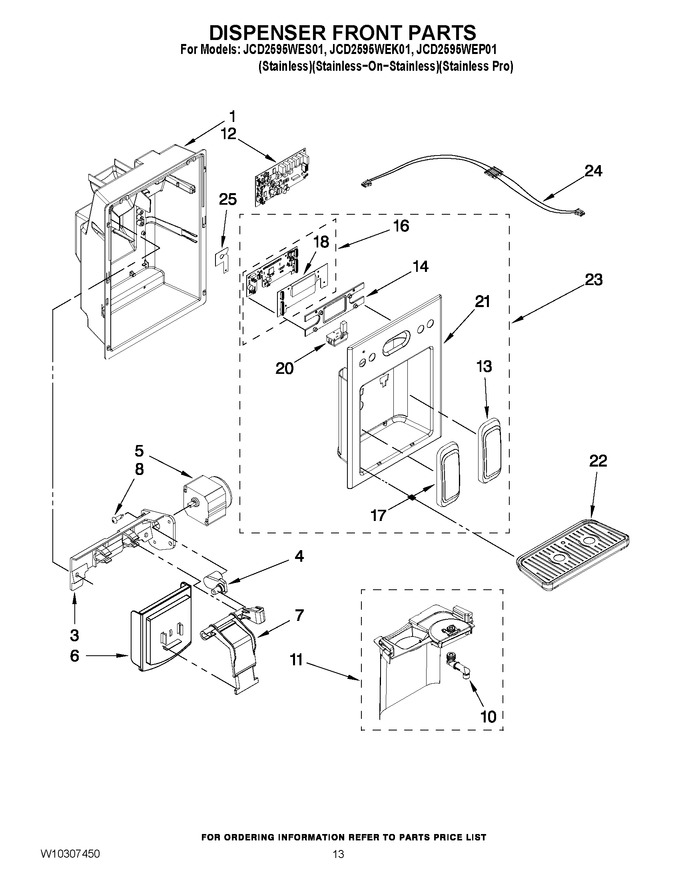

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 101.60
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 101.82
5	WPW10184813		Motor, Ice Door   (Replaces: W10184813)			Immediately	$ 108.33
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 26.09
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 92.63
8	WP4449745		Screw (4)   (Replaces: 4449745)				$ 7.98
10	W10187441		Spigot				$ 119.98
11	2305456		Seperator Assembly				$ 52.30
12	WP2303843		Electronic Control (core)   (Replaces: 2303843)				$ 365.39
13	W10133606		Pad, Water (grey)   (Replaces: 2305307AS)				$ 335.00
14	W10205009		Lens, Front Cover		Appelez-nous	-
16	W10215843		Ui Board Assy (includes No.18)		Appelez-nous	-
17	W10133606		Pad, Ice (grey)   (Replaces: 2305306AS)				$ 335.00
18	2305219		Cover, Pc Board				$ 92.99
20	W10222215		Led Assembly				$ 154.54
21	N/P		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	2315109NA		Tray Assy (nickel Alloy)				$ 40.67
23	W10205003		Front Cover Assy (nickel One)		Appelez-nous	-
24	W10178851		Wire Assembly, User Interface		Appelez-nous	-
25	2305447		Clip, Wiring		Appelez-nous	-
