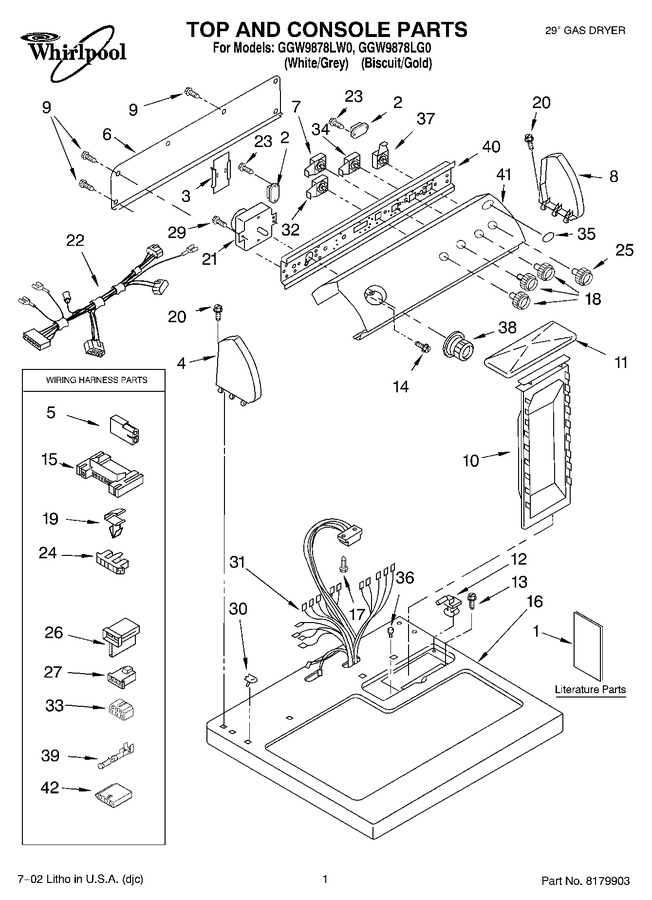

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8535845		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT3406666		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT8535827		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8535839		Literature Parts (use & Care Guide)		Appelez-nous	-
2	WP3405281		Power Relay (2)   (Replaces: 3405281)			Immediately	$ 54.85
3	3976623		Control Board		Appelez-nous	-
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	3405152		Switch, Wrinkle Shield				$ 131.07
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283380		Cover, Lint Screen (biscuit)		Appelez-nous	-
11	8283378		Cover, Lint Screen (white)				$ 44.80
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding				$ 13.22
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8271390		Top (white)		Appelez-nous	-
16	8271392		Top (biscuit)		Appelez-nous	-
17	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
18	8316545		Knob, Control (3) (ggw9878lg0)		Appelez-nous	-
18	WP8538957		Knob, Control (3) (ggw9878lw0)   (Replaces: 8316540)				$ 55.74
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
20	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
21	WP8299771		Timer Assembly (60 Hz.)   (Replaces: 8299771)				$ 331.30
22	8283281		Harness, Console		Appelez-nous	-
23	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3388228)				$ 6.95
24	3397269		Connector, Timer				$ 25.55
25	8316541		Knob, Push-to-start (ggw9878lw0)		Appelez-nous	-
25	8316546		Knob, Push-to-start (ggw9878lg0)		Appelez-nous	-
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	8299900		Harness, Wiring		Appelez-nous	-
32	8299970		Switch, Temperature				$ 193.95
33	3347243		Connector 6-circuit		Appelez-nous	-
34	3405151		Switch, Signal				$ 193.40
35	3955776		Medallion		Appelez-nous	-
36	297535		Bumper, Lint Lid		Appelez-nous	-
37	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
38	WP8557455		Timer Knob Assembly (ggw9878lw0)   (Replaces: 8316538)				$ 56.77
38	8316549		Timer Knob Assembly (ggw9878lg0)		Appelez-nous	-
39	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
40	8271418		Bracket, Control				$ 57.15
41	8532633		Panel, Control (includes Illus. 35) (grey)		Appelez-nous	-
41	8532634		Panel, Control (includes Illus. 35) (gold)		Appelez-nous	-
42	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
42	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
42	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 11.75
42	4392899		Biscuit			Immediately	$ 26.45
42	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
42	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
42	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
42	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
42	3936144		Connector				$ 20.21
42	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
42	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
42	3406839		Dry Rack			Immediately	$ 65.68
	LIT677818		Dryer		Appelez-nous	-
