SELECT A DIAGRAM

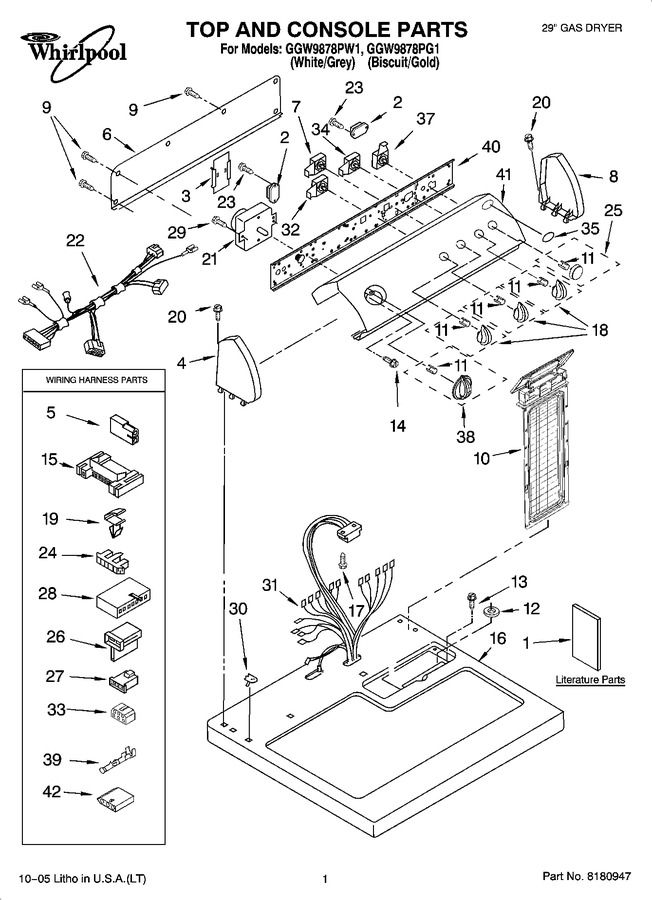

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8535825		Sheet, Feature Resource Saver		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	8562582		Installation Instructions		Appelez-nous	-
1	8533771		Sheet, Cycle Feature		Appelez-nous	-
1	8578183		Use & Care Guide		Appelez-nous	-
1	8533776		Tech Sheet		Appelez-nous	-
2	WP3405281		Power Relay (2)   (Replaces: 3405281)			Immediately	$ 54.85
3	3976623		Control Board		Appelez-nous	-
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	3405152		Switch, Wrinkle Shield				$ 131.07
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	8557858		Screen, Lint (biscuit)		Appelez-nous	-
10	W11778253		Screen, Lint (white)   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	237446		Washer (top/chute)		Appelez-nous	-
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8557928		Top (biscuit)		Appelez-nous	-
16	8557927		Top (white)		Appelez-nous	-
17	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
18	8544937		Knob, Control (3) (silver)				$ 24.98
18	8544938		Knob, Control (3) (biscuit)				$ 22.73
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
20	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
21	WP8299771		Timer Assembly (60 Hz.)   (Replaces: 8299771)				$ 347.87
22	8283281		Harness, Console		Appelez-nous	-
23	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3388228)				$ 7.30
24	3397269		Connector, Timer				$ 25.55
25	WP8544941		Knob, Push-to-start (silver)   (Replaces: 8544941)				$ 101.62
25	WP8544941		Knob, Push-to-start (biscuit)   (Replaces: 8544942)				$ 101.62
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
28	3936150		Connector, 7-circuit				$ 77.60
29	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8299900		Harness, Wiring		Appelez-nous	-
32	8299970		Switch, Temperature				$ 193.95
33	3347243		Connector 6-circuit		Appelez-nous	-
34	3405151		Switch, Signal				$ 193.40
35	8533990		Medallion		Appelez-nous	-
37	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
38	8544958		Timer Knob Assembly (biscuit)		Appelez-nous	-
38	8544957		Timer Knob Assembly (silver)				$ 41.86
39	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
40	8544895		Bracket, Control		Appelez-nous	-
41	8545984		Panel, Control (includes Illus. 35) (gold)		Appelez-nous	-
41	8545982		Panel, Control (includes Illus. 35) (silver)		Appelez-nous	-
42	3936144		Connector				$ 21.22

    View Diagram in Separate Window       Print Part List
