SELECT A DIAGRAM

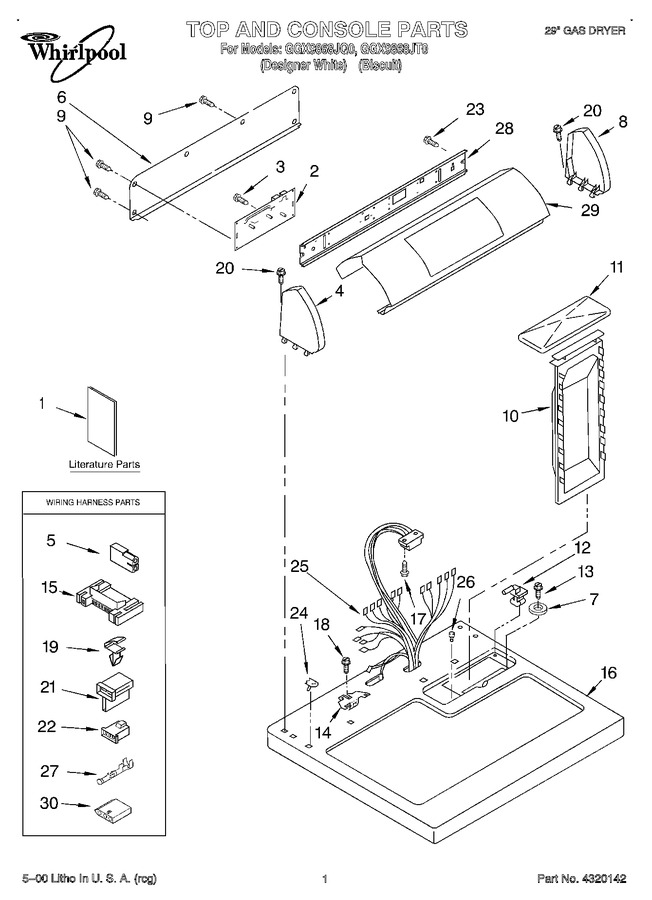

01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 3402844 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3405340		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3978547		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3978625		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8314828		Literature Parts (use & Care Guide)		Appelez-nous	-
2	3406654		Control Board		Appelez-nous	-
3	WP488163		Screw   (Replaces: 488208)				$ 7.54
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	237446		Washer Temperature		Appelez-nous	-
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	3977235		Cover, Lint Screen (white)		Appelez-nous	-
11	3977237		Cover, Lint Screen (biscuit)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3355753		Clip, Ground		Appelez-nous	-
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8271397		Top (biscuit)		Appelez-nous	-
16	8271395		Top (white)		Appelez-nous	-
17	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
18	WP355214		Screw   (Replaces: 3393918)			Immediately	$ 8.07
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
20	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
21	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
22	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
23	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
24	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
25	3406615		Harness, Wiring		Appelez-nous	-
26	297535		Bumper, Lint Lid		Appelez-nous	-
27	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
28	8274305		Bracket, Control		Appelez-nous	-
29	8274399		Panel, Control (biscuit)		Appelez-nous	-
29	8274398		Panel, Control (white)		Appelez-nous	-
30	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
30	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
30	3936144		Connector				$ 20.21
30	4392899		Biscuit			Immediately	$ 26.45
30	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
30	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
30	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
30	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
