SELECT A DIAGRAM

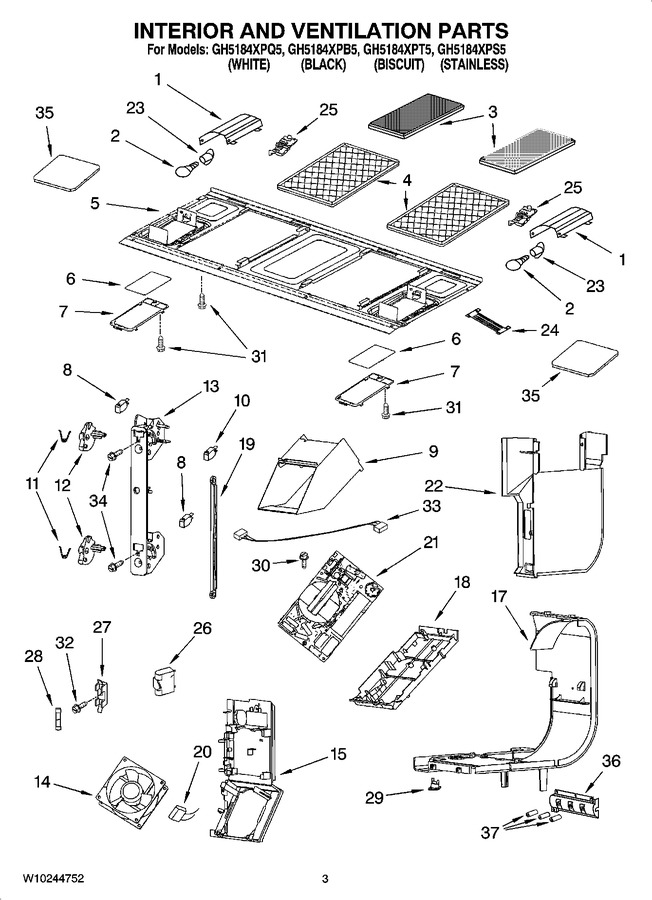

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8205096		Reflector, Lamp		Appelez-nous	-
2	8206232A		Lamp   (Replaces: 8183993)			Immediately	$ 7.34
3	W10112514A		Filter, Charcoal   (Replaces: W10112514)			Immediately	$ 28.95
4	W10113040A		Filter, Grease   (Replaces: 8184001)			Immediately	$ 23.81
5	W10244597		Plate, Bottom		Appelez-nous	-
6	8184141		Glass, Lamp				$ 34.66
7	8184889		Holder, Glass		Appelez-nous	-
8	W10211974		Switch, Micro Primary/secondary			Immediately	$ 60.44
9	W10110596		Cover, Inverter		Appelez-nous	-
10	W10211972		Switch, Micro			Immediately	$ 52.40
11	8169438		Spring, Interlock				$ 10.69
12	8205211		Plate, Cam		Appelez-nous	-
13	8185189		Support, Interlock				$ 36.40
14	8184875		Fan, Dc 12 Volt				$ 83.80
15	8184894		Housing, Fan		Appelez-nous	-
17	8206565		Bracket, Holder				$ 32.90
18	8184670		Holder, Inverter		Appelez-nous	-
19	8185190		Rod-locking Link		Appelez-nous	-
20	W10217709		Capacitor, 125 V		Appelez-nous	-
21	W10217710		Inverter 1100 W   (Replaces: 8205093)				$ 340.64
22	8185031		Plate, Side		Appelez-nous	-
23	W10244596		Holder, Lamp		Appelez-nous	-
24	8184887		Cable		Appelez-nous	-
25	8184202		Cover, Terminal		Appelez-nous	-
26	8184204		Capacitor		Appelez-nous	-
27	W10117908		Holder, Fuse				$ 52.71
28	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
29	8183998		Thermostat				$ 45.64
30	8184199		Screw		Appelez-nous	-
31	4393835		Screw				$ 11.83
32	8184200		Screw		Appelez-nous	-
33	W10615910		Ribbon Cable (p2 To Cn701 On 1100 W Inverter)   (Replaces: 8205014)				$ 235.22
34	8169479		Screw   (Replaces: 8169477)				$ 6.95
35	8184203		Foil, Lamp		Appelez-nous	-
36	W10244598		Brkt-support Ferrite Holder		Appelez-nous	-
37	8206086		Ferrite Ring		Appelez-nous	-
