01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts

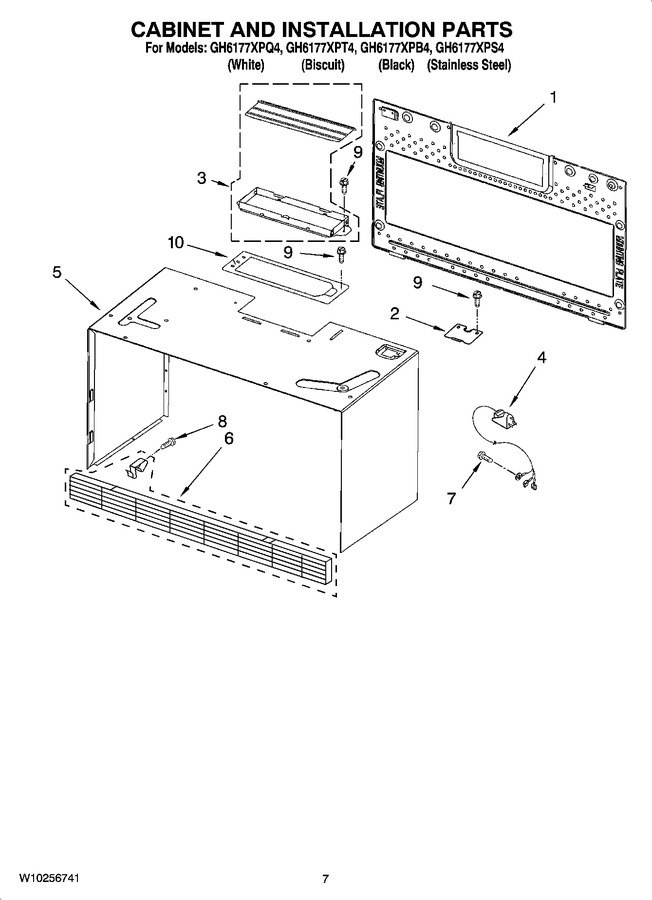

06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10222516		Plate, Mounting		Appelez-nous	-
2	8184897		Lid, Power Cord		Appelez-nous	-
3	8206556		Damper Assembly		Appelez-nous	-
4	8205640		Cord, Power				$ 67.56
5	8205399		Case, Outer (biscuit)		Appelez-nous	-
5	W10256903		Case, Outer (white)		Appelez-nous	-
5	8205398		Case, Outer (black/stainless)		Appelez-nous	-
6	W10450187		Grille, Vent (black)   (Replaces: 8205215)			Immediately	$ 81.62
6	8205217		Grille, Vent (stainless Steel)		Appelez-nous	-
6	8205216		Grille, Vent (biscuit)		Appelez-nous	-
6	W10450172		Grille, Vent (white)   (Replaces: 8205214)				$ 81.62
7	4393274		Screw		Appelez-nous	-
8	8169475		Screw				$ 6.64
9	4393472		Screw		Appelez-nous	-
10	W10110597		Plate, Damper		Appelez-nous	-
	WP8169704		Screw, Top Mountng   (Replaces: 8169704)			Immediately	$ 13.35
	W10110601		Pcba		Appelez-nous	-
	W10111830		Sensor, Humidity		Appelez-nous	-
	W10114264		Cavity Thrmst 1-2		Appelez-nous	-
	W10114362		Cavity Thrmst 2-3		Appelez-nous	-
	8205947		Installation, Hardware				$ 88.07
	8184781		Template, Upper		Appelez-nous	-
	W10114358		Supply, Power		Appelez-nous	-
	W10114359		Main		Appelez-nous	-
	W10114360		Thermostat, Grill		Appelez-nous	-
	W10114361		Stirrer/magnetron		Appelez-nous	-
	W10256914		Socket, Lamp		Appelez-nous	-
	8206231		Magnetron		Appelez-nous	-
	W10258106		Harness, Wire		Appelez-nous	-
	W10114263		Inverter, Ground		Appelez-nous	-
