01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts

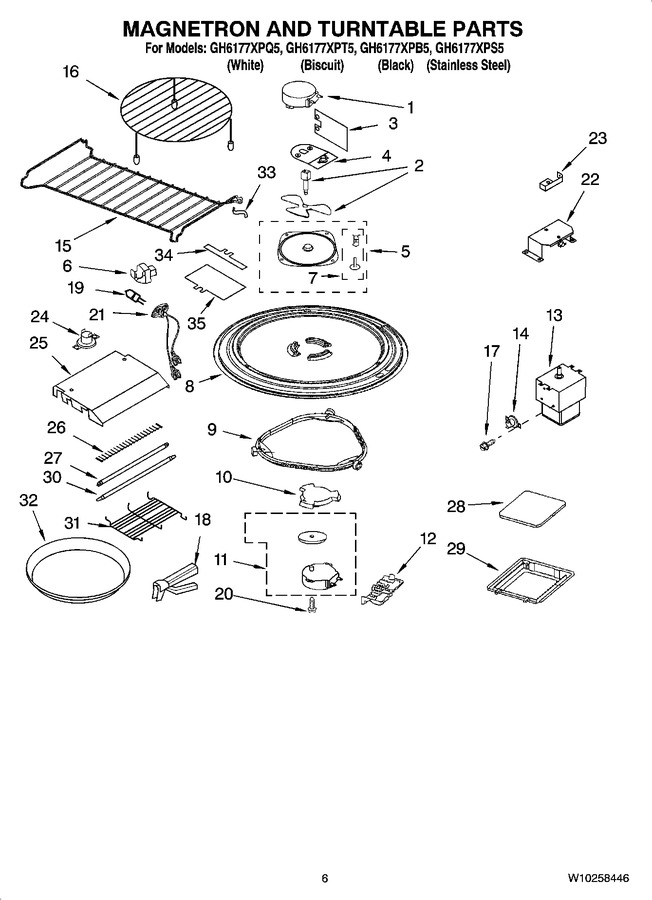

05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8205044		Motor, Stirrer		Appelez-nous	-
2	8205202		Stirrer Shaft/blade		Appelez-nous	-
3	W10110592		Shield, Nomex		Appelez-nous	-
4	8206454		Thermostat/bracket		Appelez-nous	-
5	8185059		Cover, Inlet Includes Nails And Bushings		Appelez-nous	-
6	W10840794		Hook, Rack (hook, Back Left)   (Replaces: W10245208)				$ 24.76
6	W10840795		Hook, Rack (hook, Back Right)   (Replaces: W10245209)				$ 26.04
6	W10840759		Hook, Rack (hook, Front(2))   (Replaces: W10245207)		Appelez-nous	-
7	8204659		Nails/bushings (5 Of Each)		Appelez-nous	-
8	4393799		Turntable				$ 82.90
9	W11252182		Ring, Turntable   (Replaces: 8206227)			Immediately	$ 39.55
10	W10435116		Driver, Turntable   (Replaces: 8206228)				$ 34.46
11	W10642989		Motor, Turntable   (Replaces: 8183953)			Immediately	$ 199.95
12	W10110598		Cover, Terminal		Appelez-nous	-
13	8206317		Magnetron   (Replaces: W10256900)				$ 371.72
14	8184951		Thermostat				$ 52.33
15	8205549		Rack		Appelez-nous	-
16	8184862		Grill		Appelez-nous	-
17	W10244600		Screw		Appelez-nous	-
18	W10851464		Handle, Crisper Plate   (Replaces: W10106520)				$ 26.07
19	8204670		Halogen Light			Immediately	$ 30.26
20	4393832		Screw				$ 11.55
21	W10256911		Socket, Halogen Light		Appelez-nous	-
22	8205578		Thermostat/bracket		Appelez-nous	-
23	W10110595		Bracket, Plug		Appelez-nous	-
24	8204995		Thermostat		Appelez-nous	-
25	W10256913		Grill, Insulation Plate		Appelez-nous	-
26	WP8184837		Browner, Halogen   (Replaces: 8184837)				$ 319.38
27	W10510202		Quartz Tube, Soft Start   (Replaces: 8184838)			Immediately	$ 41.31
28	W10189668		Glass, Lamp				$ 42.01
29	8169646		Frame, Glass				$ 6.64
30	WPW10510203		Heater, Quartz   (Replaces: 8184839)				$ 229.80
31	8205239		Cover, Protector		Appelez-nous	-
32	W10748097		Plate, Crisp   (Replaces: 8204983)				$ 55.50
33	W10315274		Spacer   (Replaces: W10107780)				$ 46.29
34	W10114356		Shield, Front				$ 99.71
35	W10114357		Shield, Rear		Appelez-nous	-
