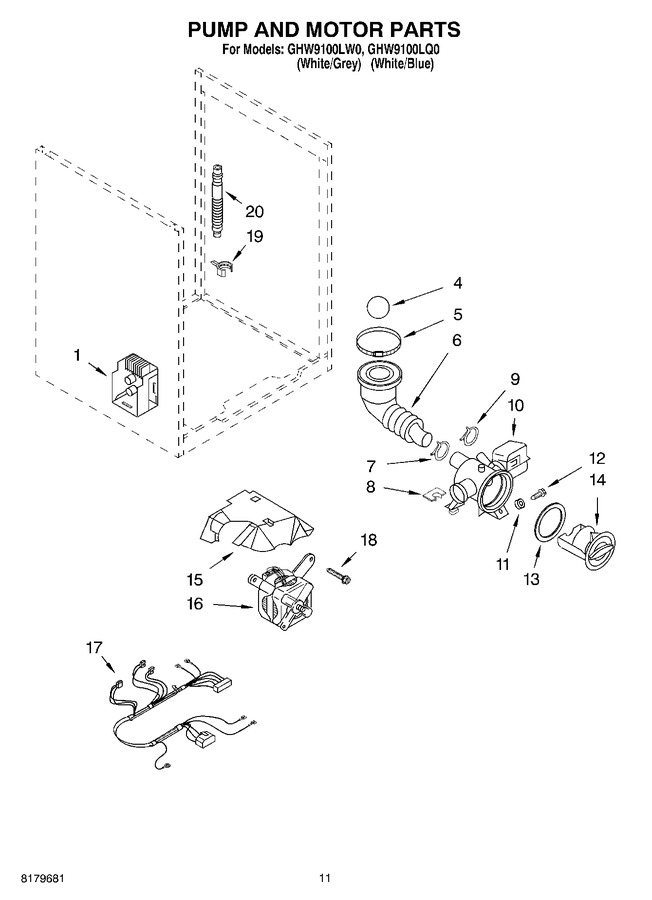

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10756692		Control Unit (motor)   (Replaces: 8181693)			Immediately	$ 407.85
4	W10121657		Ball   (Replaces: 8181733)				$ 20.03
5	WP696392		Clamp   (Replaces: 8181734)				$ 8.12
6	WPW10467168		Hose, Tub To Pump   (Replaces: 8181732)			Immediately	$ 38.31
7	WP285655		Clamp   (Replaces: 8181753)			Immediately	$ 8.39
8	8181786		Damper, Rubber (rear)		Appelez-nous	-
9	WP3367052		Clamp   (Replaces: 8181752)				$ 8.32
10	280187		Pump (complete)   (Replaces: 8181684)			Immediately	$ 233.93
11	8181787		Damper, Rubber (front)		Appelez-nous	-
12	8181780		Screw				$ 5.27
13	8181736		Seal, Filter Cap				$ 36.51
14	8181735		Cap, Filter		Appelez-nous	-
15	8181766		Cover, Motor		Appelez-nous	-
16	8181682		Motor		Appelez-nous	-
17	8181782		Harness, Motor		Appelez-nous	-
18	8181761		Bolt, Motor		Appelez-nous	-
19	8182209		Retainer, Drain Hose   (Replaces: 8181755)				$ 20.57
20	285863		Drain Extension			Immediately	$ 32.43
20	WPW10003250		Drain Hose (inner)   (Replaces: 8181740)			Immediately	$ 34.59
20	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
20	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
20	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
20	W10289554A		Shipping Kit   (Replaces: 285865)				$ 64.96
20	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
