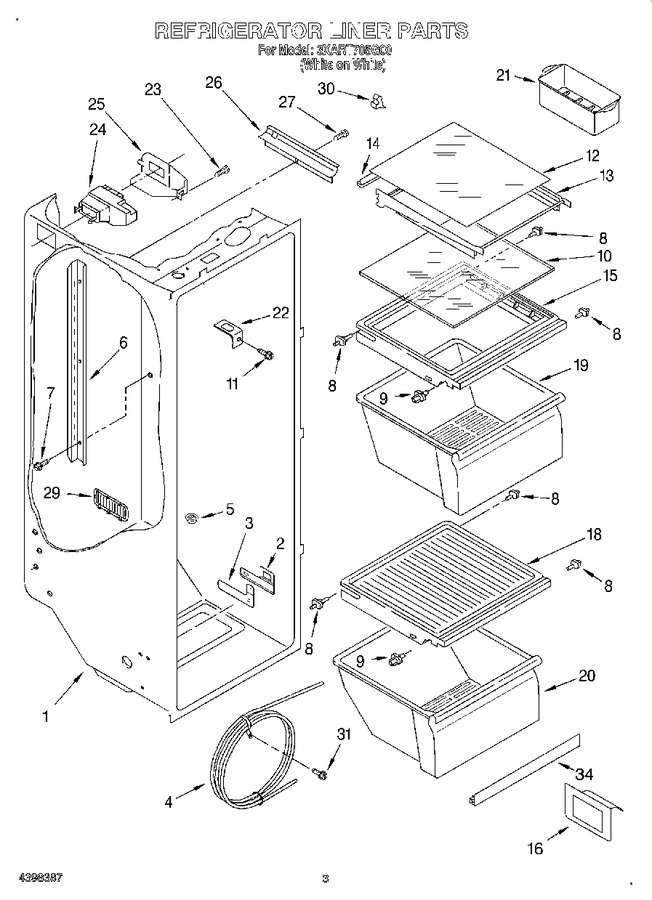

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 86.26
3	2182757		Slide Meat Pan Control				$ 75.15
4	WP2256126		Reservoir   (Replaces: 2196171)				$ 159.56
5	2171846		Release Valve				$ 18.99
6	2181796		Shelf Ladder (2)		Appelez-nous	-
7	WP488729		Screw (6)   (Replaces: 487539)			Immediately	$ 7.45
8	4388538		Stud (8)   (Replaces: 1110718)			Immediately	$ 29.57
9	4388539		Stud, Left Front   (Replaces: 2172943)				$ 20.05
10	W10864399		Glass, Cover   (Replaces: 2174150)				$ 208.83
11	WP488488		Screw (2)   (Replaces: 489290)				$ 7.67
12	2177978		Glass (3)		Appelez-nous	-
13	2173178		Shelf, Assembly Cantilever (3)		Appelez-nous	-
14	1125594		Retainer, Glass		Appelez-nous	-
15	W10508993		Crisper Cover   (Replaces: 2173394)				$ 275.27
16	2179350		Deflector				$ 77.30
18	W10508993		Cover, Meat Pan   (Replaces: 2173398)				$ 275.27
19	WP2188656		Pan, Crisper   (Replaces: 2174416)				$ 128.90
20	2174418		Meat Pan				$ 167.10
21	W10136387A		Egg Bin   (Replaces: 2164333)				$ 17.59
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 32.49
23	WP489478		Screw   (Replaces: 489478)				$ 7.36
24	WPW10129864		Air Diffuser Assembly   (Replaces: 2175155)				$ 325.37
25	WP2212240		Air Diffuser Cover   (Replaces: 2161470)				$ 124.34
26	2150330		Cover, Conduit		Appelez-nous	-
27	W10759522		Screw   (Replaces: 486298)				$ 7.42
29	2182147		Louver		Appelez-nous	-
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 9.85
31	488280		Screw		Appelez-nous	-
34	2179561		Extension		Appelez-nous	-
